EXTERIOR BOLLARDS

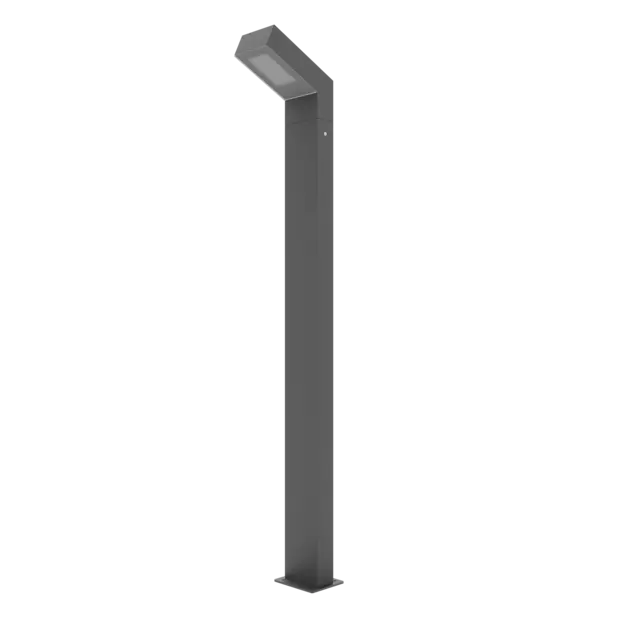

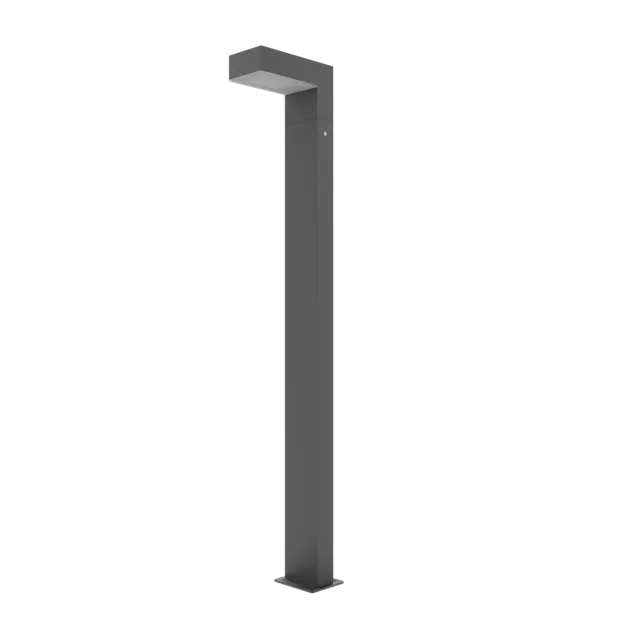

This head of luminaire is designed for LED light sources and features a rectangular pillar shape, making it an ideal choice for discreetly illuminating building surroundings, pathways, and gardens. Available in various dimensions and slopes as standard, this luminaire can be customised to suit specific lighting needs. It optionally offers a 115° angle with a cross-section of 100x50mm, providing a 90° angle with the same dimensions. Additionally, the second version features a 115° angle with a more compact cross-section of 60x50mm. This versatility allows for tailored lighting solutions that enhance both safety and visual appeal in outdoor spaces, making it suitable for a range of residential and commercial applications.

  • Materials: Housing made of aluminum profile painted with paint resistant to external conditions (standard color: graphite, other colors on request), frosted tempered glass. Info: luminaire = head of luminaire + pole (accessories)
  • Installation: For the ground

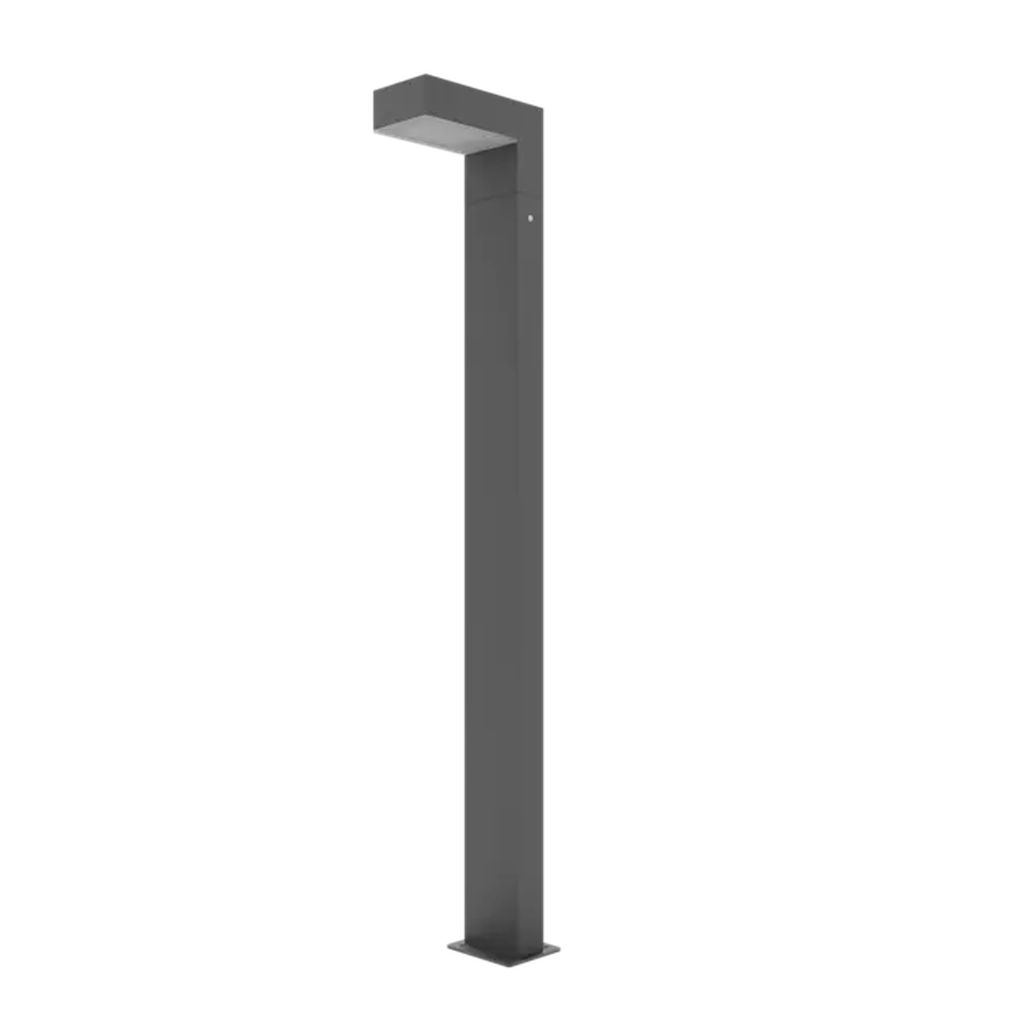

XB1005 | Architectural Outdoor Dark Skies Compliant 50x100 Bollard Luminaire

The XB1005 is a sleek and durable LED bollard luminaire designed to provide discreet yet effective illumination for outdoor environments.

Its minimalist design and robust construction make it an ideal choice for enhancing the ambiance and safety of pathways, gardens, and building perimeters.​

🔍 Key Features:

Modern Design: Constructed from an aluminum profile painted with weather-resistant paint, featuring a frosted tempered glass diffuser

Efficient Illumination: Equipped with a 9W LED light source delivering up to 490 lumens, ensuring energy-efficient lighting with a luminous efficacy of 53–54 lm/W.​

Versatile Beam Angles: Offers beam angles of 90° and 115° to suit various lighting requirements.​

Color Temperature Options: Available in 3000K (warm white) and 4000K (neutral white) to create the desired ambiance.​

Robust Construction: IP65-rated for protection against dust and water ingress, and IK08-rated for impact resistance, making it suitable for various outdoor conditions.​

Flexible Installation: Designed for ground mounting with optional pole heights of 500mm, 1000mm, or 1800mm, allowing customization based on project needs.​

Finish Options: Standard finishes include anthracite, black, and grey, with the option for custom RAL colors to match specific design requirements.​

🏢 Ideal Applications:

Perfect for illuminating pathways, gardens, building surroundings, parking areas, and parks, providing both functional lighting and aesthetic enhancement.​

📐 Technical Specifications:

Power Consumption: 9W​

Luminous Flux: 480–490 lm​

Luminous Efficacy: 53–54 lm/W​

Color Temperature: 3000K / 4000K​

Color Rendering Index (CRI): ≥80​

Beam Angles: 90°, 115°​

Material: Aluminum housing with frosted tempered glass diffuser​

Protection Rating: IP65​

Impact Resistance: IK08​

Mounting: Ground-mounted with optional pole heights (500mm, 1000mm, 1800mm)​

Finish Options: Anthracite, Black, Grey (Custom RAL colors available)​

Enhance your outdoor spaces with the XB1005, combining minimalist design with reliable performance for effective and stylish illumination.​

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMINAIRE llm/W DIAMETER (Ø) HEIGHT (H)
5

210 llm

 100 50
10

400 llm

 100 50
CONTINUE TO CUSTOMISE
