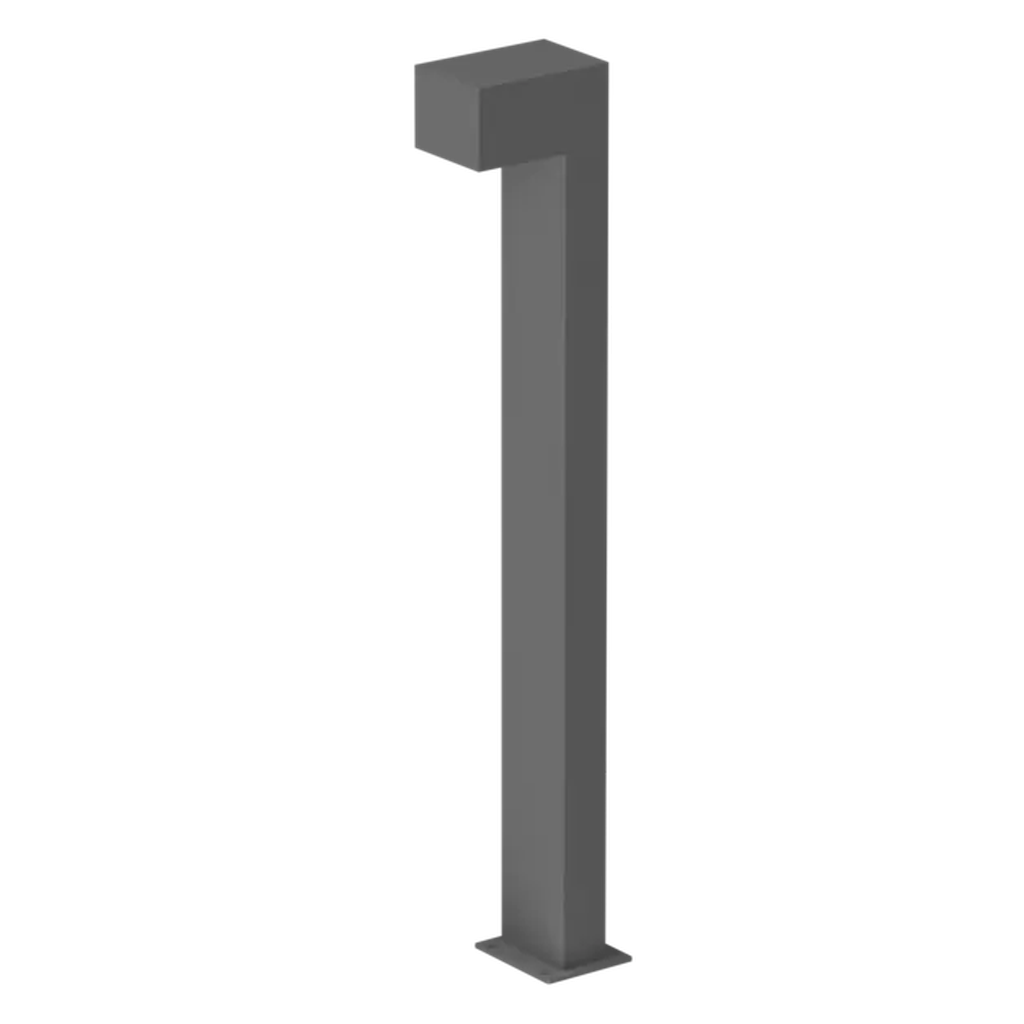

• XB1001.
  • XB1001.
1 2

XB1006

XB1006

EXTERIOR BOLLARDS

This architectural luminaire is designed for GU10 LED lamps, making it an ideal solution for discreetly illuminating building surroundings, pathways, and gardens. Its sleek design allows it to blend seamlessly into various landscapes while providing effective lighting. Additionally, the luminaire can be customised with a paint finish in any RAL colour, ensuring it complements the aesthetic of its environment. Whether for residential or commercial use, this luminaire enhances both safety and visual appeal in outdoor settings.

  • Materials: Electrostatically painted aluminium housing (standard colour: anthracite), OPAL diffuser made of plastic. Recommended use of LED bulbs adapted to 230V power supply. Light source not included.
  • Installation:

XB1006 | Architectural Outdoor Dark Skies Compliant Bollard Luminaire

The XB1006 is a sleek and durable LED bollard luminaire designed to provide discreet yet effective illumination for outdoor environments.

Its minimalist design and robust construction make it an ideal choice for enhancing the ambiance and safety of pathways, gardens, and building perimeters.​

🔍 Key Features:

Modern Design: Features a rectangular aluminium profile with a frosted tempered glass diffuser, offering a contemporary aesthetic that complements various architectural styles.​

Efficient Illumination: Equipped with a 9W LED light source delivering up to 490 lumens, ensuring energy-efficient lighting with a luminous efficacy of 53–54 lm/W.​

Versatile Beam Angles: Available with 90° or 115° beam angles to suit different lighting requirements.​

Robust Construction: IP65-rated for protection against dust and water ingress, and IK08-rated for impact resistance, making it suitable for various outdoor conditions.​

Flexible Installation: Designed for ground mounting with optional pole heights of 500mm, 1000mm, or 1800mm, allowing customization based on project needs.​

Color Temperature Options: Available in 3000K (warm white) and 4000K (neutral white) to create the desired ambiance.​

Finish Options: Standard finish in anthracite, with options for black or grey upon request.​

🏢 Ideal Applications:

Perfect for illuminating pathways, gardens, building surroundings, parking areas, and parks, providing both functional lighting and aesthetic enhancement.​

📐 Technical Specifications:

Power Consumption: 9W​

Luminous Flux: 480–490 lm​

Luminous Efficacy: 53–54 lm/W​

Color Temperature: 3000K / 4000K​

Color Rendering Index (CRI): ≥80​

Beam Angles: 90° / 115°​

Material: Aluminum housing with frosted tempered glass diffuser​

Protection Rating: IP65​

Impact Resistance: IK08

Operating Temperature Range: -20°C to +40°C​

Mounting: Ground-mounted with optional pole heights (500mm, 1000mm, 1800mm)​

Finish Options: Anthracite (standard), Black, Grey

Enhance your outdoor spaces with the XB1006, combining minimalist design with reliable performance for effective and stylish illumination.

 DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMINAIRE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
GU10
N/A
 150 100 50
