XB1009

XB1009

EXTERIOR BOLLARDS

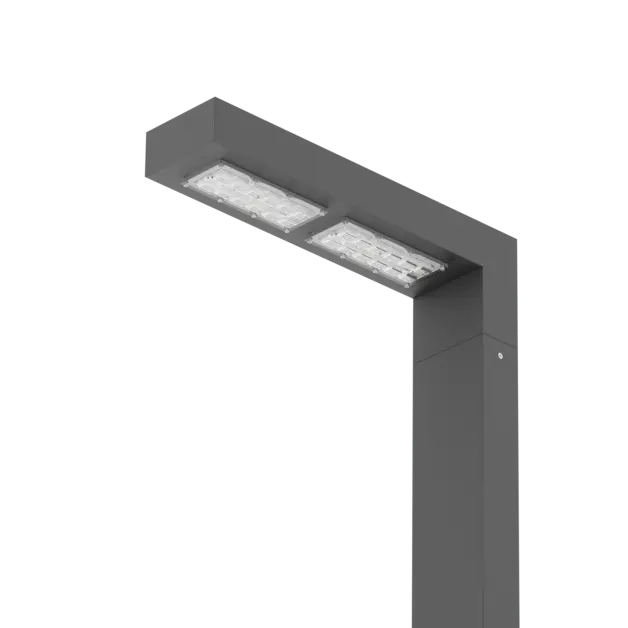

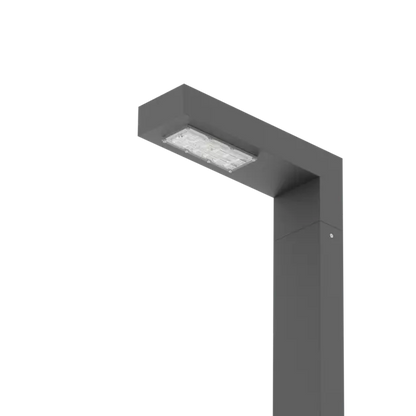

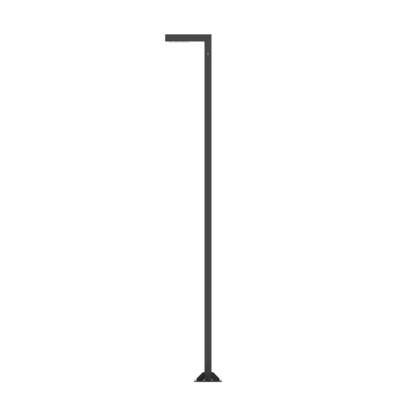

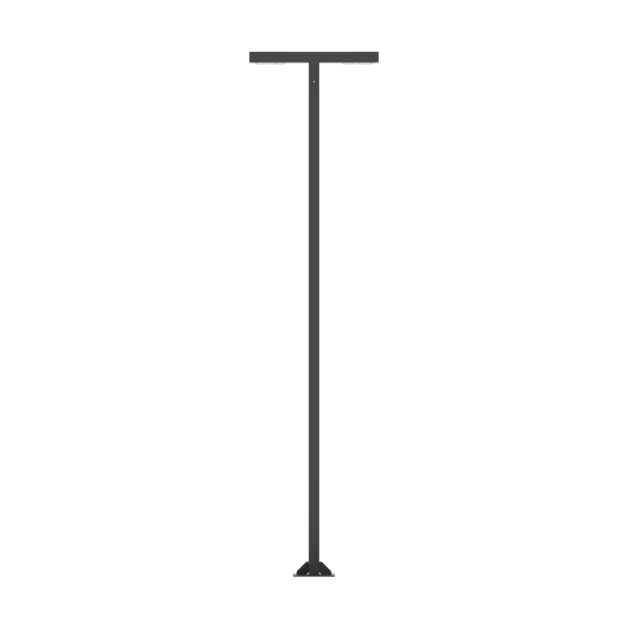

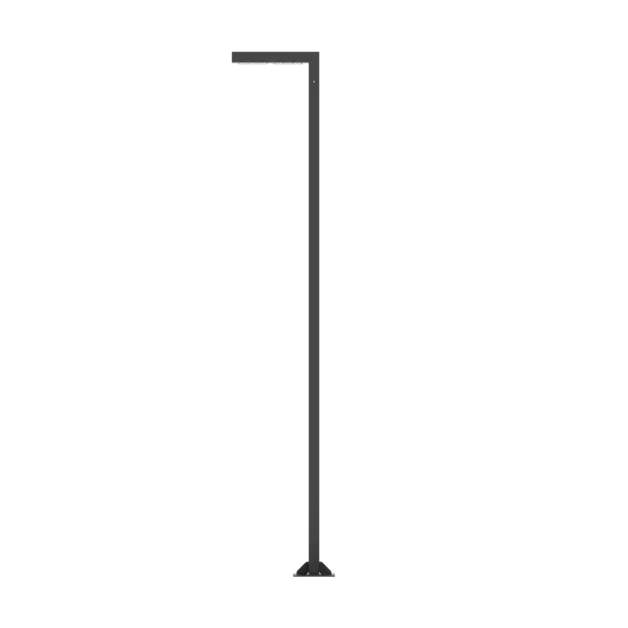

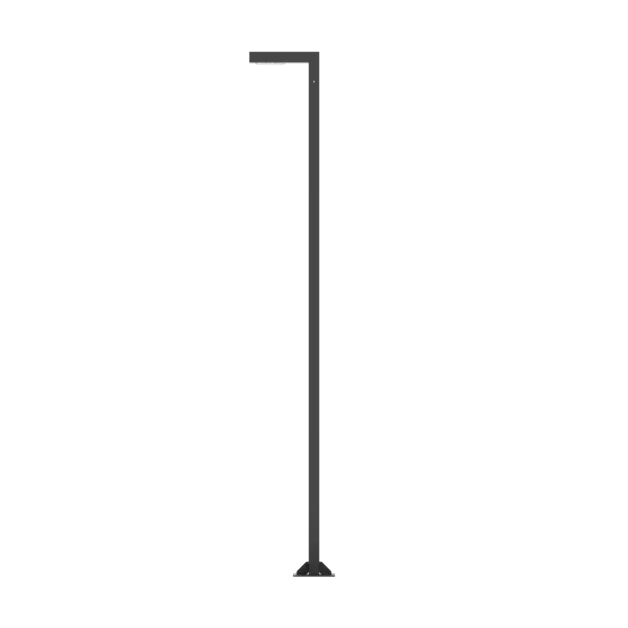

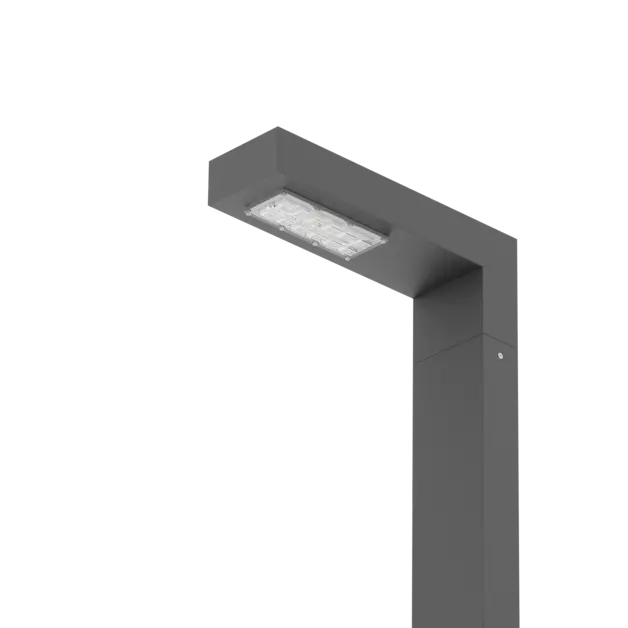

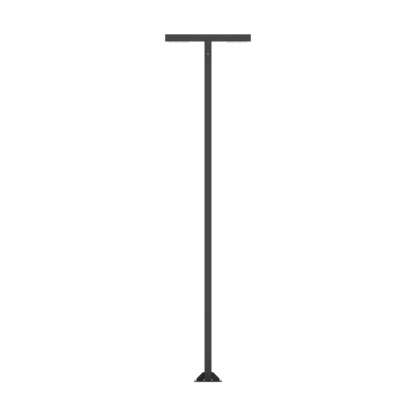

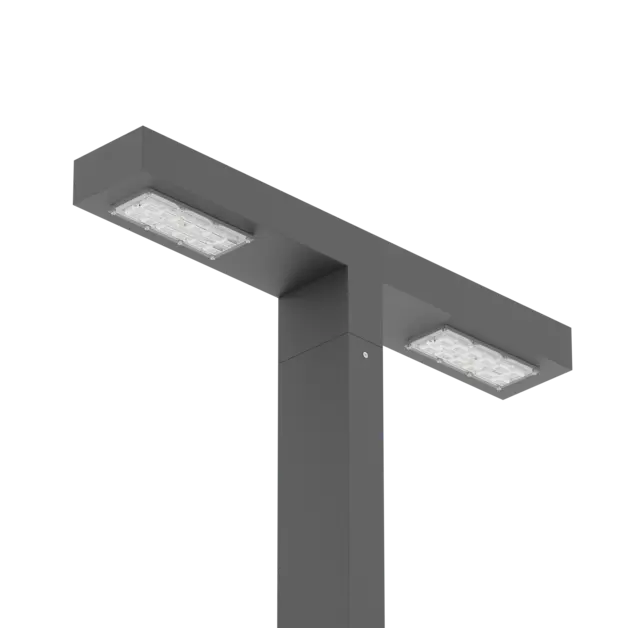

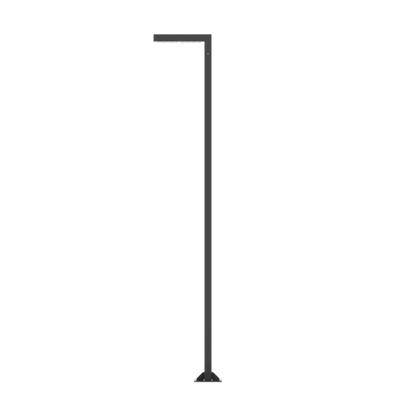

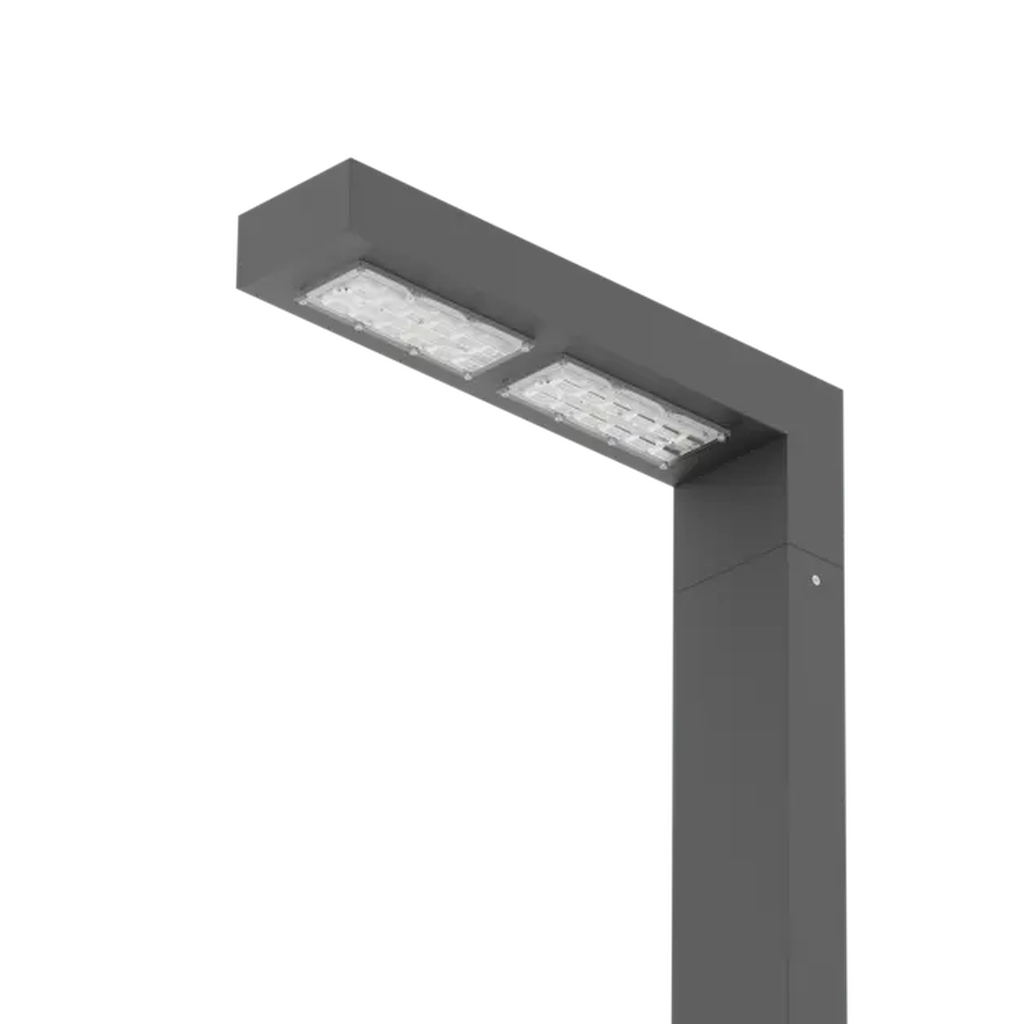

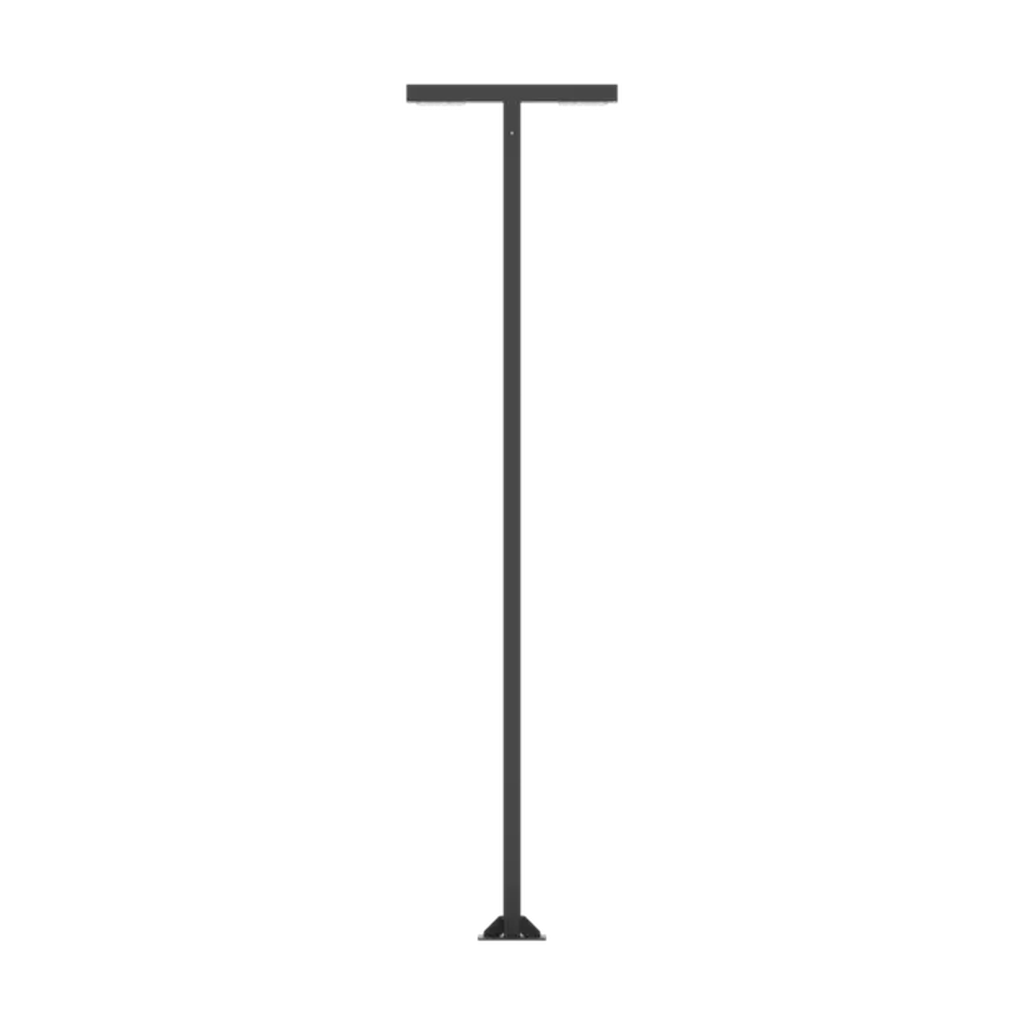

This luminaire is specifically designed for LED light sources and intended for mounting on a pole, offering two optic options, firstly for road optics and additionally for asymmetrical optics to cater to various lighting needs. The luminaire features a head measuring 150mm, which can be paired with different pole heights: a pole height of 2850mm for a total height of 3000mm, 3850mm for a total height of 4000mm, or 4850mm for a total height of 5000mm. This luminaire is an ideal solution for discreetly illuminating building surroundings, pathways, and gardens, and it can also be mounted on a wall using a wall joint, providing additional flexibility in installation. Its elegant design ensures it complements various outdoor settings while delivering effective lighting for safety and ambiance.

  • Materials: Housing made of aluminum profile painted with paint resistant to external conditions (standard color: graphite, other colors on request), plastic diffuser. Info: luminaire = head of luminaire + pole (accessories). The pole must be ordered separately!
  • Installation: For the ground, wall mounting with the bracket

XB1009 | Architectural Outdoor Dark Skies Compliant Bollard Luminaire

The XB1009 is a sleek and durable LED bollard luminaire designed to provide discreet yet effective illumination for outdoor environments.

Its minimalist design and robust construction make it an ideal choice for enhancing the ambiance and safety of pathways, gardens, and building perimeters.​

🔍 Key Features:

Modern Design: Constructed from an aluminum profile painted with weather-resistant paint, featuring a transparent plastic diffuser.​

Efficient Illumination: Available in 16W to 54W versions, delivering luminous flux ranging from 2,140 to 7,620 lumens, ensuring energy-efficient lighting with a luminous efficacy up to 141 lm/W.​

Versatile Optics: Offers asymmetric (AS) and street (ST) optics to suit various lighting requirements.​

Color Temperature Options: Available in 3000K (warm white) and 4000K (neutral white) to create the desired ambiance.​

Robust Construction: IP65-rated for protection against dust and water ingress, and IK08-rated for impact resistance, making it suitable for various outdoor conditions.​

Flexible Installation: Designed for ground or wall mounting with optional pole heights of 3m, 4m, or 5m, allowing customization based on project needs.​

Control Options: Available with FIXED OUTPUT, DALI, WIRELESS drivers to accommodate different control systems.​

Finish Options: Standard finish in anthracite, with options for black, grey, white, or custom RAL colors upon request.​

🏢 Ideal Applications:

Perfect for illuminating pathways, gardens, building surroundings, parking areas, and parks, providing both functional lighting and aesthetic enhancement.​

📐 Technical Specifications:

Power Consumption: 16W – 54W​

Luminous Flux: 2,140 – 7,620 lm​

Luminous Efficacy: Up to 141 lm/W​

Color Temperature: 3000K / 4000K​

Color Rendering Index (CRI): ≥80​

Optics: AS (Asymmetric) / ST (Street)​

Material: Aluminum housing with transparent plastic diffuser​

Protection Rating: IP65​

Impact Resistance: IK08​

Operating Temperature Range: -20°C to +35°C​

Mounting: Ground or wall-mounted with optional pole heights (3m, 4m, 5m)​

Driver Options: ON/OFF, DALI​

Finish Options: Anthracite (standard), Black, Grey, White, Custom RAL colors available​

Enhance your outdoor spaces with the XB1009, combining minimalist design with reliable performance for effective and stylish illumination.​

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMINAIRE llm/W DIAMETER (Ø) HEIGHT (H)
16
2140 llm
 400 150
29
3780 llm
 400 150
54
7130 llm
 400 150
