XH1002

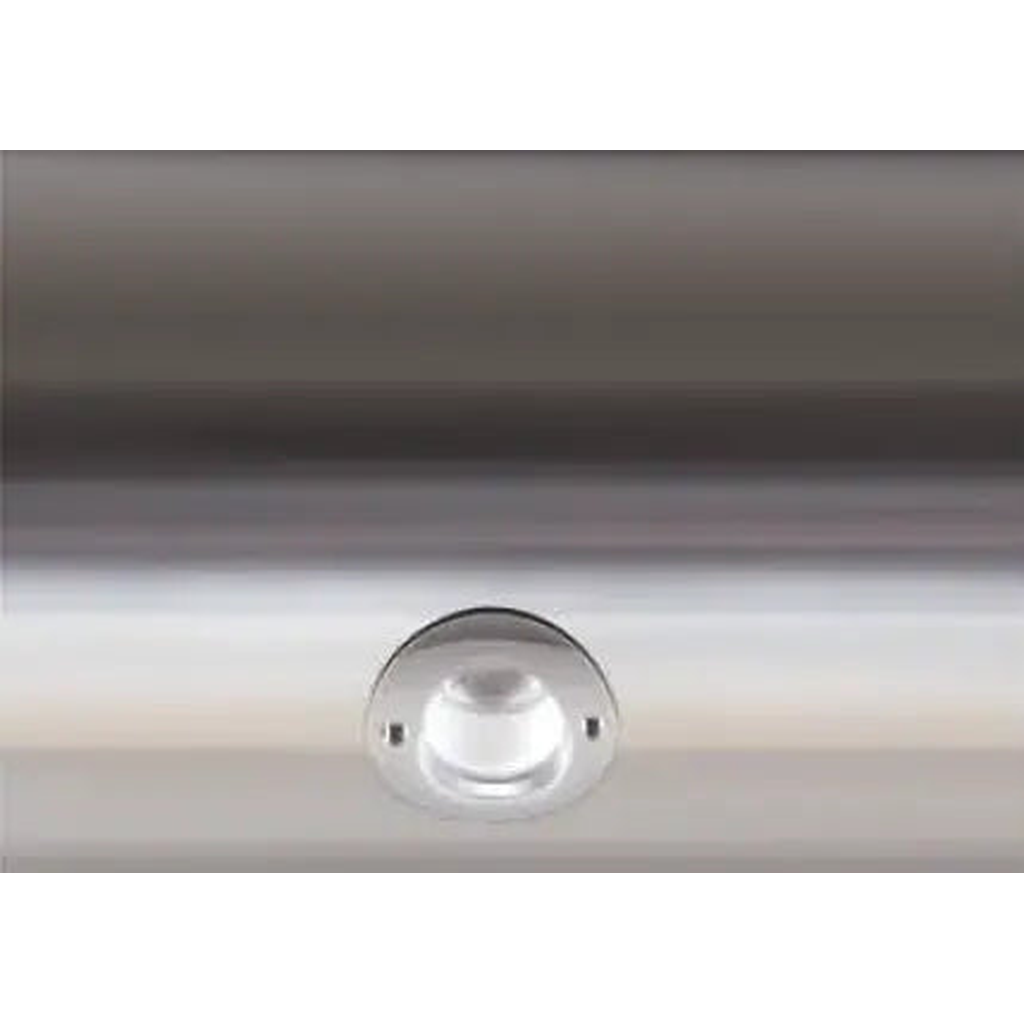

XH1002 | 2W Recessed Handrail LED Light for Discreet Exterior Wayfinding

XH1002 is a compact architectural LED puck designed for seamless integration into handrails, balustrades, and architectural barriers. With ultra-low glare optics, IP67 protection, and IK10 durability, it's the ultimate solution for illuminating outdoor steps, ramps, and walkways with understated precision.

🧩 Key Features:

• Discrete Puck Format: 28mm recessed diameter integrates seamlessly into stainless steel handrails or bespoke barrier systems

• Exterior-Grade Protection: IP67-rated for water ingress and IK10 impact-rated for public and high-traffic areas

• Precision Light Output: Delivers 2W of focused white light via elliptical 20° x 50° beam optics for uniform wall or floor grazing

• Low Glare Wayfinding: Engineered for visual comfort, enhancing safety without dominating the architectural scene

• Plug & Play Cabling: Supplied with a pre-connected cable, simplifying installation and reducing on-site labour

• Robust Materials: Machined aluminium housing and tempered lens designed to endure extreme external environments

• Custom Finishes Available: Standard anodised or powder-coated in any RAL colour to suit bespoke projects

• Dimming & Drivers: Compatible with 24V DC constant voltage drivers, with dimmable versions on request

🏢 Ideal Applications:
Bridges, outdoor balustrades, public stairwells, handrail ramps, pedestrian underpasses, hotel or campus pathways, and any project requiring low-level architectural illumination

📐 Technical Specifications:

• Mounting Type: Recessed into handrails or surface structures

• Diameter: 28mm

• Power: 2W

• Voltage: 24V DC

• Beam Angle: Elliptical 20° x 50°

• Light Output: 110-140 lm

• Luminous Efficacy: Up to 70 lm/W

• Colour Temperature: 2700K, 3000K, or 4000K

• CRI: >90

• Dimming: Optional

• Material: Anodised or powder-coated aluminium

• Lens: Tempered clear glass

• Ingress Protection: IP67

• Impact Rating: IK10

• Operating Temp: -25°C to +45°C

• Rated Lifetime: 50,000 hours (L70B10)

🌍 Why Specify XH1002?

Because safety, elegance, and resilience should go hand in hand. The XH1002 delivers glare-free wayfinding and architectural consistency where it's needed most, without compromise.
