XH1003

XH1003 | 4W Recessed LED Marker for Exterior Handrail Integration

XH1003 is a precision-engineered, recessed handrail luminaire delivering up to 270 lumens from a 4W source. With its durable IP67, IK10 housing and low-glare asymmetric optics, it's designed to elevate safety and aesthetics across exterior balustrades, walkways, and architectural steps, without sacrificing design integrity.

🧩 Key Features:

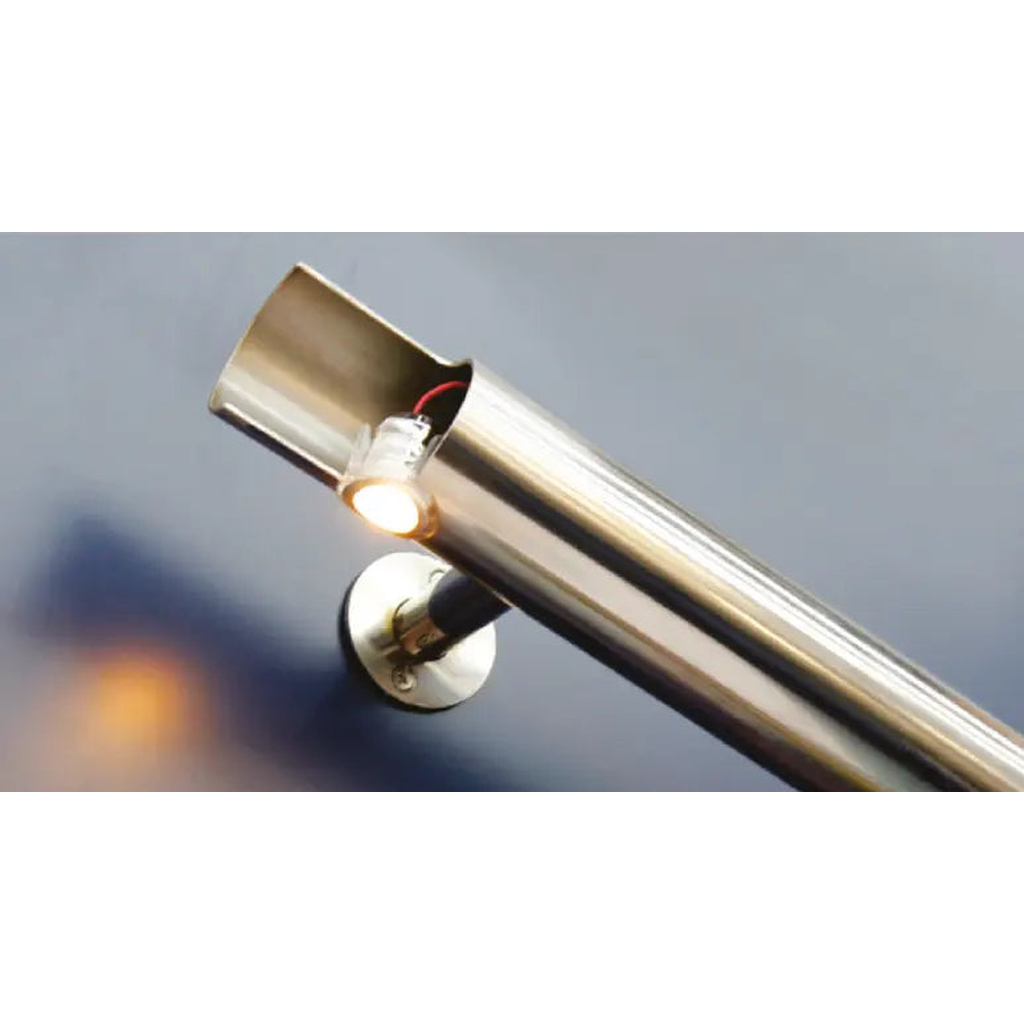

• Flush-Fit 35mm Design: Engineered for seamless integration into stainless steel handrails and barriers, ensuring minimal disruption to architectural lines

• High Output, Low Glare: 270lm from 4W via advanced elliptical beam technology (20° x 50°), ideal for illuminating horizontal or vertical planes with uniformity

• Built for the Elements: Fully sealed to IP67 and IK10 standards, waterproof, tamper-resistant, and built for harsh environments

• Quick Connect Cable: Supplied pre-wired with durable cabling, reducing installation time and complexity

• Choice of Finishes: Available in anodised or custom powder-coated colours to match surrounding materials

• Dimmable Option: Compatible with 24V DC constant voltage drivers, dimmable versions available upon request

• High CRI Output: CRI >90 for excellent colour rendering in outdoor or public applications

• No-Fuss Maintenance: Rated lifetime of 50,000 hours L70B10 ensures longevity and minimal upkeep

🏢 Ideal Applications:
Universities, bridges, rail platforms, healthcare campuses, residential walkways, public handrails, ramps, and high-spec exterior projects requiring safety-focused, low-level illumination

📐 Technical Specifications:

• Mounting Type: Recessed handrail or architectural barrier

• Diameter: 35mm

• Power: 4W

• Voltage: 24V DC

• Beam Angle: 20° x 50° elliptical

• Luminous Flux: 270 lm

• Luminous Efficacy: 67 lm/W

• Colour Temperatures: 2700K / 3000K / 4000K

• CRI: >90

• Driver Compatibility: ON/OFF, DALI2, CASAMBI, 24V DC drivers

• Material: Anodised or powder-coated aluminium

• Lens: Tempered clear glass

• Ingress Protection: IP67

• Impact Resistance: IK10

• Operating Temp: -25°C to +45°C

• Lifetime: 50,000h (L70B10)

🌍 Why Specify XH1003?

Because when public-facing architecture demands both performance and restraint, XH1003 delivers, blending robust safety lighting with elegant, invisible design language.
