XH1004

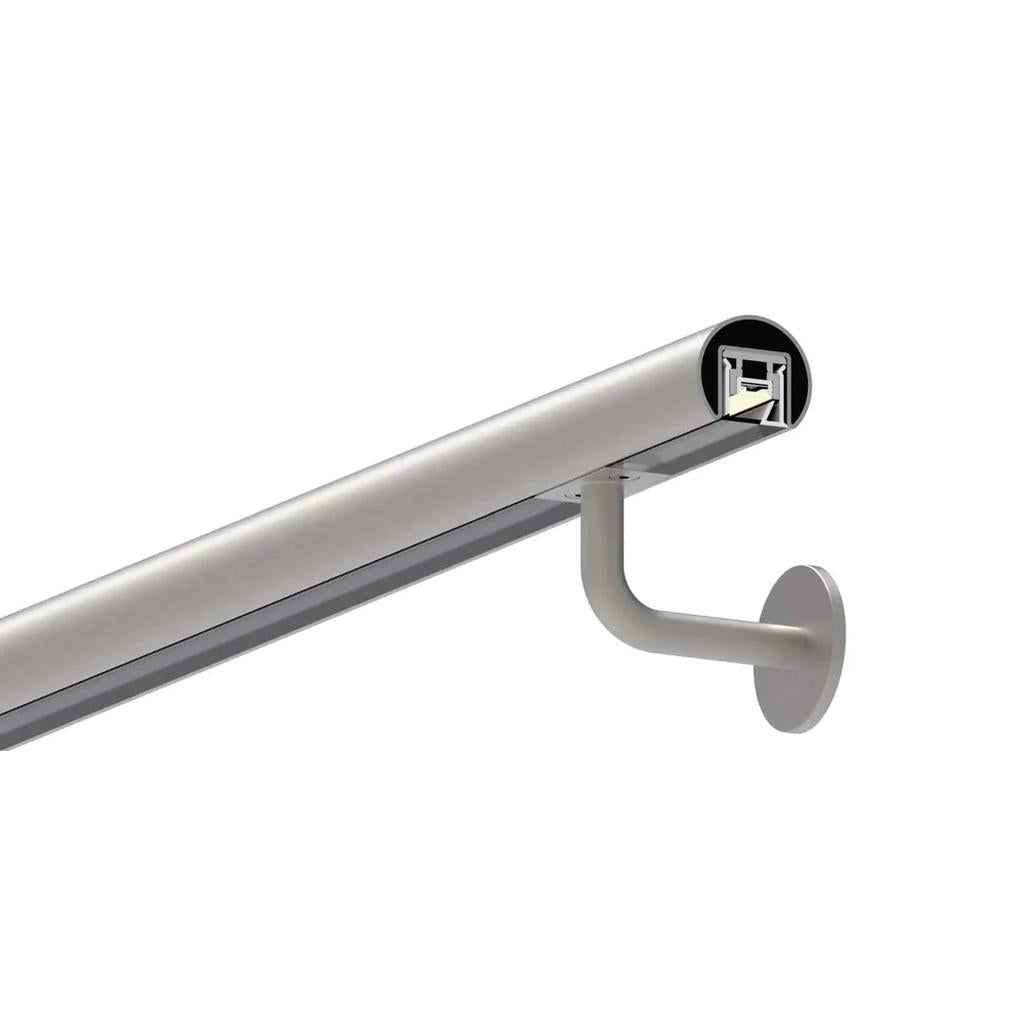

XH1004 | High-Efficiency 2W Dual-Window LED Marker Light for Handrails

XH1004 is a sleek, dual-beam recessed LED handrail luminaire delivering symmetrical illumination from just 2W. Precision-machined for architectural stainless steel integration, it features dual windows for bi-directional light output — an elegant, low-glare solution for exterior safety and aesthetic enhancement.

🧩 Key Features:

• Dual-Window Emission: Emits symmetrical light from both sides — perfect for evenly lighting pathways, walkways, or railings

• Compact Powerhouse: Outputs up to 180 lumens at 2W, offering high efficiency and excellent visibility

• Flush-Mount 35mm Design: Designed for stainless steel or aluminium handrails and bollards with minimal visual disruption

• Rugged for Outdoor Use: IP67 sealed, IK10 impact rated — engineered to endure public realm abuse, moisture, and dust

• Elliptical Beam Profile: Low-glare 20° x 50° optic ideal for illuminating horizontal planes with soft, uniform spread

• No-Fuss Integration: Pre-wired for 24V DC systems, compatible with dimmable or ON/OFF drivers

• Finishes to Suit: Available in anodised finishes or custom powder coatings to suit your environment

• High Colour Accuracy: CRI >90 available for applications demanding superior colour clarity

🏢 Ideal Applications:
Urban pathways, railway stations, educational campuses, hospitals, care homes, handrails, ramps, balconies, and public stairs requiring safe, stylish illumination

📐 Technical Specifications:

• Mounting Type: Recessed handrail

• Diameter: 35mm

• Power: 2W

• Voltage: 24V DC

• Beam Angle: 20° x 50° elliptical

• Luminous Flux: Up to 180 lm

• Luminous Efficacy: 90 lm/W

• Colour Temperatures: 2700K / 3000K / 4000K

• CRI: >90

• Driver Options: ON/OFF, DALI2, CASAMBI (24V DC)

• Materials: Anodised/powder-coated aluminium housing

• Lens: Tempered glass

• Ingress Protection: IP67

• Impact Resistance: IK10

• Operating Temp: -25°C to +45°C

• Lifetime: 50,000h (L70B10)

🌍 Why Specify XH1004?

Because dual-beam lighting should be as robust and precise as the environments it protects, and XH1004 makes safety feel seamless, not seen.
