XH1005

XH1005 | Ultra-Compact 1.2W Recessed LED Marker Light for Handrails and Bollards

XH1005 is a discrete 30mm recessed marker luminaire engineered for handrails, bollards, and architectural façades. At just 1.2W, it delivers targeted elliptical beam output up to 100 lumens - enhancing public safety with minimal energy and maximum design precision.

🧩 Key Features:

• Slim 30mm Profile: Designed for flush integration into stainless steel or aluminium handrails and small bollards

• Energy-Efficient: Just 1.2W power draw with up to 100 lm output - ideal for energy-conscious projects

• Elliptical Beam Distribution: 20° x 50° beam spreads light across horizontal planes, perfect for step or pathway lighting

• IP67 / IK10: Built tough for exposed installations - water, dust, and vandal-resistant

• Choice of CCTs: Available in 2700K / 3000K / 4000K colour temperatures

• Superior Glare Control: High-quality optics reduce visual discomfort while maintaining effective coverage

• Driver Flexibility: Works with 24V DC ON/OFF or dimmable drivers

• Long-Lasting Performance: 50,000-hour lifespan (L70B10) ensures long-term reliability

• Architectural Finishes: Choice of anodised or powder-coated housing to match any environment

🏢 Ideal Applications:

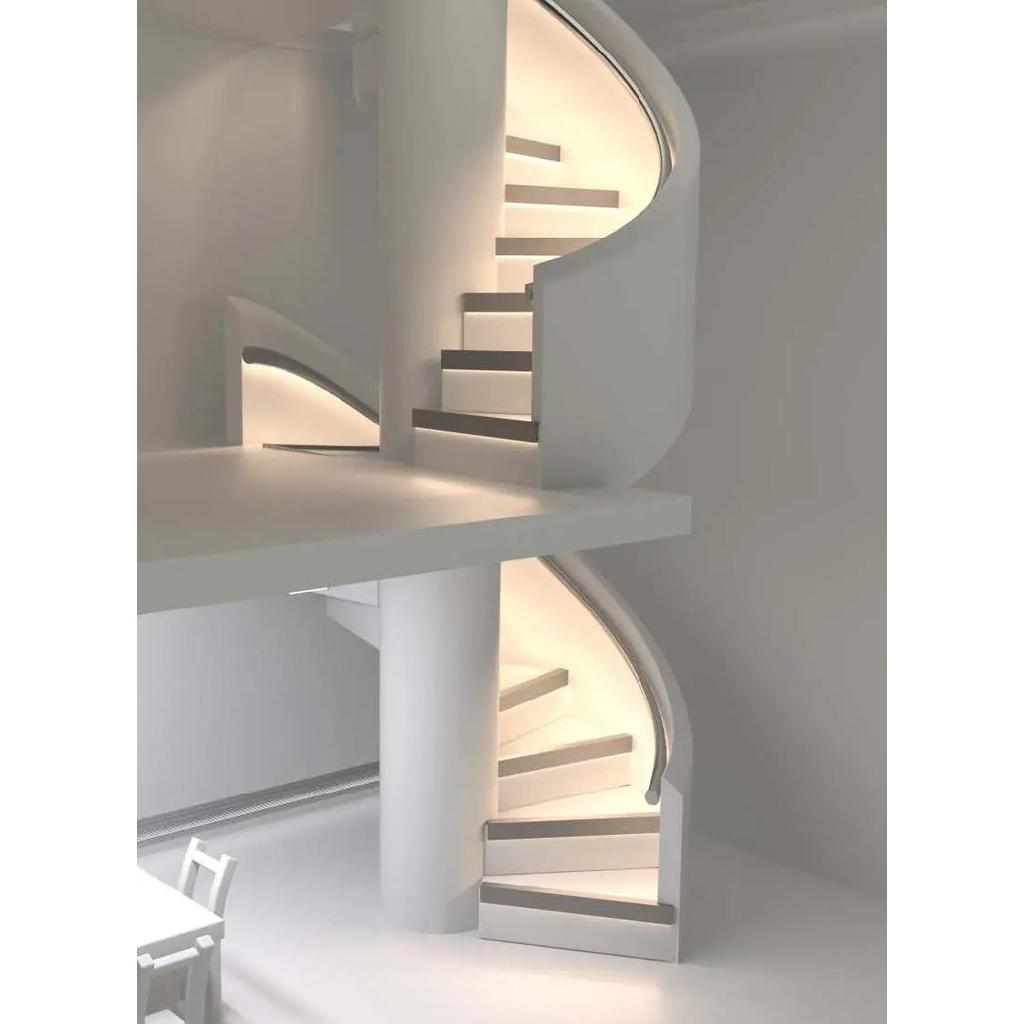

External handrails, balustrades, ramps, platforms, staircases, walkways, bollards, and feature lighting in public realms or commercial spaces

📐 Technical Specifications:

• Mounting Type: Recessed handrail or bollard

• Cut-out Diameter: 30mm

• Power: 1.2W

• Voltage: 24V DC

• Luminous Flux: Up to 100 lm

• Beam Angle: 20° x 50° elliptical

• Colour Temperatures: 2700K, 3000K, 4000K

• CRI: >90

• Driver Options: ON/OFF, Dimmable

• Material: Aluminium body, tempered glass lens

• IP Rating: IP67

• IK Rating: IK10

• Operating Temp: -25°C to +45°C

• Lifetime: 50,000h (L70B10)

• Weight: Approx. 100g

🌍 Why Specify XH1005?

Because small-scale lighting can still deliver large-scale impact, XH1005 merges subtle form with durable function to keep your environments safe and stunning.
