XH1006

XH1006 | Low-Glare Recessed Handrail LED with Asymmetric Beam for Pathway and Ramp Illumination

XH1006 is a high-spec recessed marker luminaire engineered for seamless installation into handrails, balustrades, and bollards. Designed to deliver precise asymmetric light distribution with minimal visual glare, this 1.6W unit is perfect for guiding pedestrians in public and commercial environments.

🧩 Key Features:

• Ultra-Low Glare Optics: Angled reflector and lens system minimises direct view of the source, reducing glare and increasing comfort

• Compact Profile: Ideal for 42mm diameter handrails - flush finish with minimal footprint

• Asymmetric Beam: 20° forward throw for directional lighting of stairs, pathways, and ramps

• Energy Efficient: Only 1.6W with output up to 120 lm

• IP67 / IK10: Fully sealed and impact-resistant for harsh outdoor environments

• Flexible CCT Options: Available in 2700K / 3000K / 4000K

• 24V DC System: Compatible with ON/OFF or dimmable drivers for tailored control

• Precision Construction: CNC-machined aluminium housing with powder-coated or anodised finish

• Longevity: 50,000-hour rated life (L70B10) with excellent lumen maintenance

🏢 Ideal Applications:

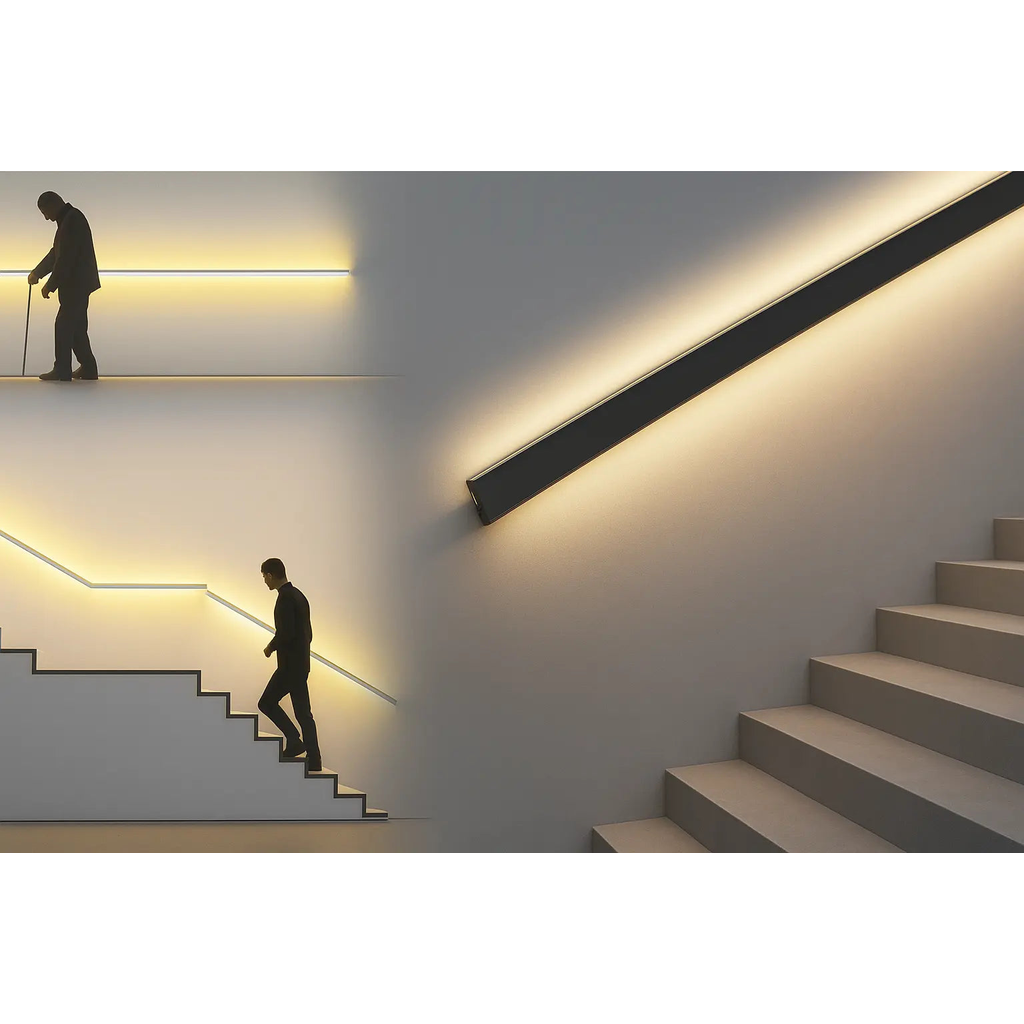

Stair handrails, access ramps, balcony balustrades, pathway safety lighting, commercial handrails, urban bollards, and architectural landscape projects

📐 Technical Specifications:

• Mounting Type: Recessed (typically into Ø42mm stainless steel handrails)

• Cut-out Diameter: 30mm

• Power: 1.6W

• Voltage: 24V DC

• Luminous Flux: Up to 120 lm

• Beam Angle: Asymmetric (approx. 20°)

• Colour Temperatures: 2700K, 3000K, 4000K

• CRI: >90

• Driver Options: ON/OFF, DALI2, CASAMBI

• Housing: Anodised or powder-coated aluminium

• Lens: Tempered glass

• IP Rating: IP67

• IK Rating: IK10

• Operating Temp: -25°C to +45°C

• Weight: ~100g

• Lifetime: 50,000h (L70B10)

• Certifications: CE, RoHS


🌍 Why Specify XH1006?

Because visibility and safety shouldn't come at the cost of design, XH1006 blends technical brilliance with architectural subtlety for modern, glare-free wayfinding.
