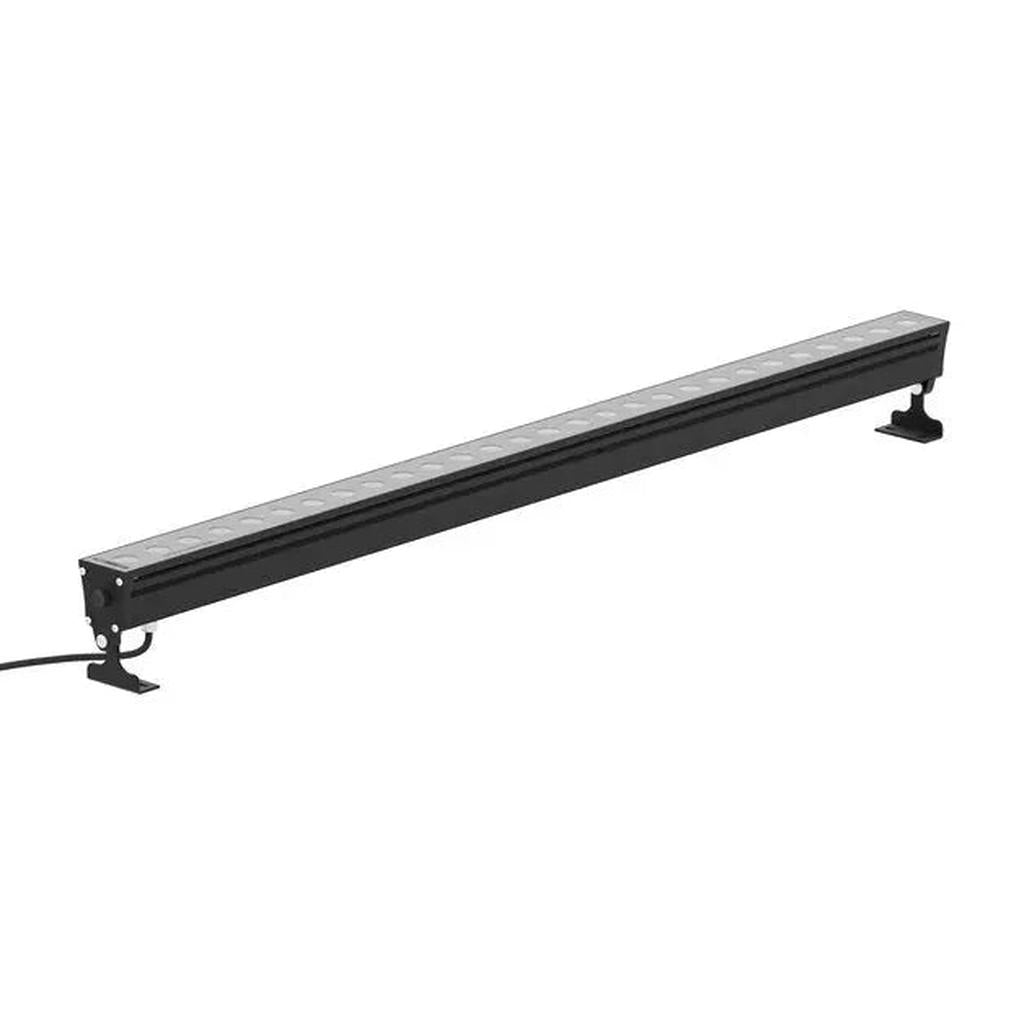

XL1001

XL1001

EXTERIOR LINEAR

The XL1001 is a modern, hermetic luminaire designed with multiple functions. It features the latest generation of LED sources enclosed in an aesthetically pleasing aluminum housing, offering a high degree of protection with an IP66 rating. This makes it ideal for use in challenging environments where durability and reliability are essential. Its versatile design ensures it can be used in a variety of applications, providing effective illumination while maintaining a contemporary appearance. The XL1001 combines cutting-edge technology with robust construction, making it a perfect choice for both residential and commercial settings.

  • Materials: Electrostatically painted aluminium housing (grey colour in standard). Possibility of painting in any color from RAL palette. Transparent tempered glass.
  • Installation:

XL1001 | IP66-Rated Architectural Linear LED Luminaire

The XL1001 is a robust and versatile linear LED luminaire designed for demanding architectural and industrial applications.

Its sleek aluminum housing and high ingress protection rating make it ideal for both indoor and outdoor environments where durability and performance are paramount.​

🔍 Key Features:

  • Durable Construction: Crafted from electrostatically painted aluminum housing with transparent tempered glass, ensuring longevity and resistance to environmental factors.​
  • High Ingress Protection: IP66-rated for protection against dust and water ingress, suitable for challenging environments.​
  • Impact Resistance: IK10-rated, offering high resistance to mechanical impacts.​
  • Versatile Mounting Options: Designed for ground, wall, and surface mounting, providing flexibility in installation.​
  • Energy-Efficient Performance: Offers a power range of 9–30W, delivering luminous flux between 835–4660 lm with an efficacy of up to 155 lm/W.​
  • Advanced Optical Systems: Equipped with LNS or SH diffusers, providing various beam angles (10°, 12°, 20°, 38°, 45°) for tailored light distribution.​
  • Smart Control Compatibility: Available with ON/OFF or DALI drivers, facilitating integration with modern lighting control systems.​
  • Color Temperature Options: Available in 3000K , 4000K, RGB, catering to different ambiance requirements.​
  • Customization: Standard finishes include white, black, grey, and anthracite, with the option for custom RAL colors to match specific design needs.​

🏢 Ideal Applications:

  • Perfect for laboratories, garages, technical rooms, security areas, social rooms, sports facilities, parking garages, arcades, car parks, and sports fields.​

📐 Technical Specifications:

  • Power Consumption: 9–30W​
  • Luminous Flux: 835–4660 lm​
  • Efficacy: Up to 155 lm/W​
  • Colour Temperatures: 3000K / 4000K / RGB​
  • CRI: ≥80​
  • Beam Angles: 10°, 12°, 20°, 38°, 45°​
  • Driver Options: ON/OFF, DALI​
  • IP Rating: IP66​
  • Impact Resistance: IK10​
  • Operating Temperature: -25°C to +40°C​
  • Finish Options: White, Black, Grey, Anthracite, Custom RAL​

Elevate your architectural lighting design with the XL1001, where form meets function in perfect harmony.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W)

 LUMEN DIAMETER (Ø) HEIGHT (H)
9

1160 llm

 340 86
16

2330 llm

 640 86
23

3490 llm

 940 86
30

4660 llm

 1240 86

CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
