AR1001

AR1001

ARCHITECTURAL

A modern LED lighting fixture with high luminous efficiency and a sleek, subtle design, making it perfect for use in prestigious or high-profile spaces.

  • Materials: Powder painted aluminium profile in two colours: grey and black, micro prismatic MPRM diffuser and PAR louver, possibility of painting in any colour from RAL palette.
  • Installation:

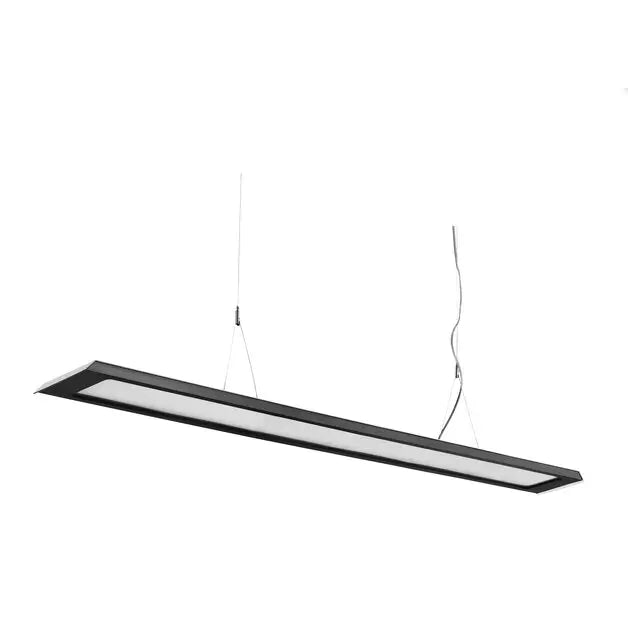

AR1001 | Architectural Linear LED Pendant

The AR1001 is a high-efficiency suspended LED luminaire designed for contemporary interior environments.

Its slim profile, precision optics, and customisable finish options make it ideal for commercial, corporate, and hospitality applications where both performance and aesthetics are paramount.

🔍 Key Features:

  • Architectural Form: Minimalist rectangular housing constructed from powder-coated aluminium, available in white, grey, or black. Custom RAL colours available upon request.

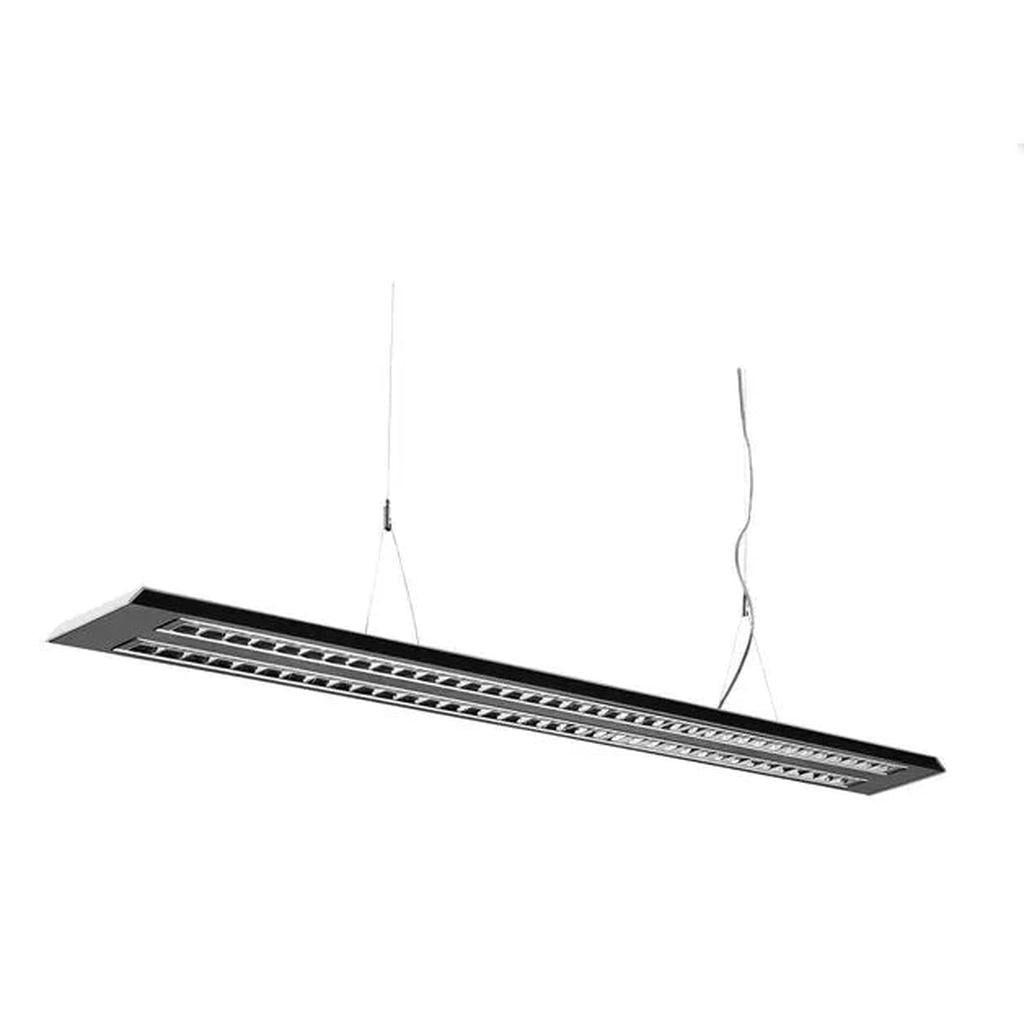

  • Optical Control: Equipped with either a microprismatic diffuser (MPRM) for glare reduction or a parabolic louvre (PAR/PARW) for precise light distribution.
  • Performance: Luminous efficacy up to 137 lm/W, delivering between 2,900 and 6,970 lumens depending on configuration.
  • Mounting: Suspended installation with included suspension kit, suitable for various ceiling types.
  • Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.

🏢 Ideal Applications:

  • Perfect for offices, conference rooms, receptions, commercial spaces, corridors, and staircases where modern design and efficient lighting are essential.

📐 Technical Specifications:

  • Light Source: Integrated LED
  • Power Consumption: 27–51W
  • Luminous Flux: 2,900–6,970 lm
  • Luminous Efficacy: Up to 137 lm/W
  • Colour Temperature: 3000K or 4000K
  • CRI: 80 or 90
  • MacAdam SDCM: 3
  • UGR: ≤19 (depending on optics)
  • Driver Options: ON/OFF, DALI
  • Emergency Module: Optional
  • Motion Sensor: Optional
  • Protection Rating: IP40
  • Impact Resistance: IK03 or IK04
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser Material: Prismatic plastic (MPRM) or aluminium louvre (PAR/PARW)
  • Dimensions: Length: 1240 mm or 1740 mm; Width: 155 mm; Height: 31 mm
  • Weight: 3.5–5 kg

The AR1001 combines sleek design with high-performance lighting, making it a versatile choice for enhancing modern interiors with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
27 3,490 llm 1240 155 31
35 3,670 llm 1240 155 31
45 4,790 llm 1740 155 31
51 6,970 llm 1740 155

31



CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
