ARCHITECTURAL

A family of circular LED luminaires with a modern and versatile design, suitable for any interior space. Their key features include uniform luminance across the OPAL diffuser and high-quality lighting performance. Suspensions included in the set.

  • Materials: Powder painted aluminum profile (white, grey and black colours in standard). OPAL diffuser.
  • Installation:

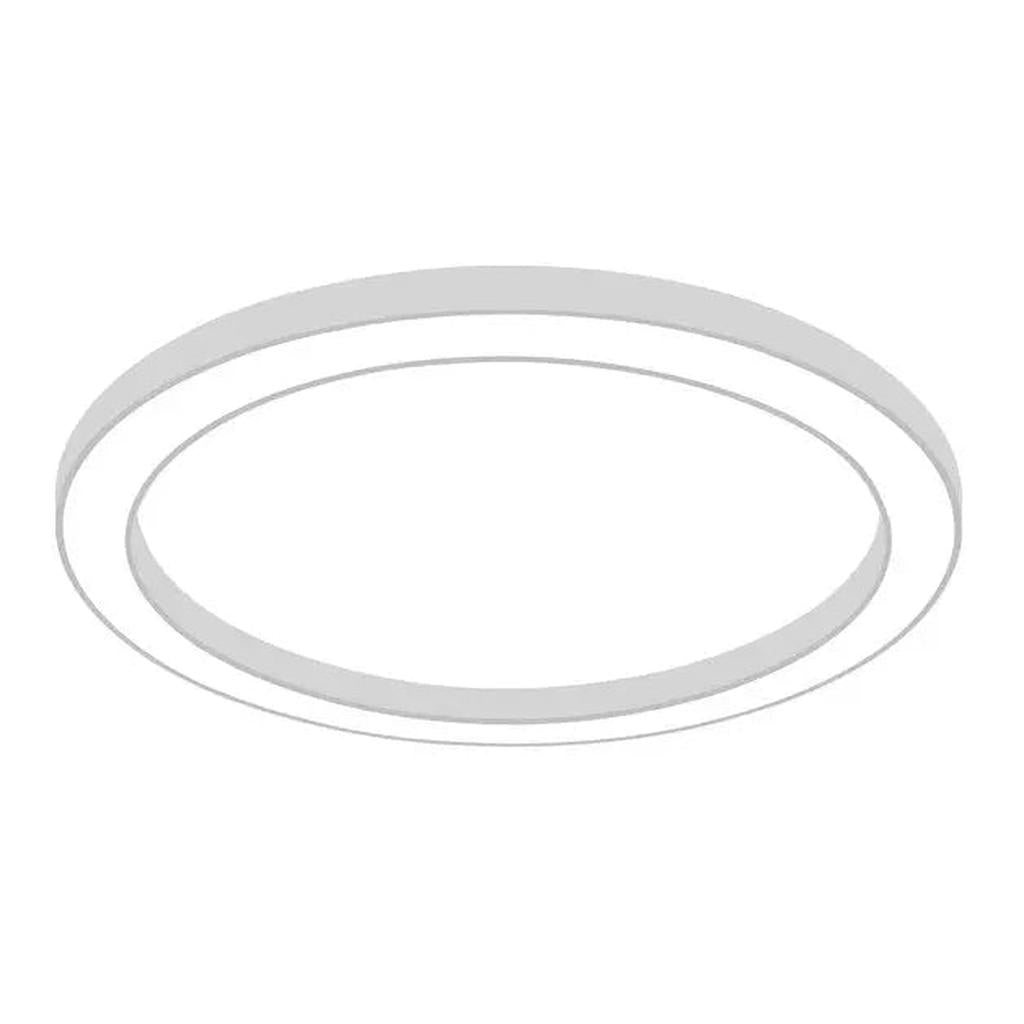

AR1002 | Large-Scale Architectural LED Ring Polo Pendant Direct Light

The is a AR1002 suspended LED luminaire featuring an expansive circular design.

Its substantial form and uniform illumination make it an ideal choice for adding a modern architectural statement to spacious interior environments.​

🔍 Key Features:

Architectural Design: Large circular shape crafted from powder-coated aluminium, offering a contemporary aesthetic.​

Uniform Illumination: Equipped with an opal diffuser that ensures even light distribution, enhancing visual comfort.​

Efficient Performance: Delivers a luminous flux of up to 62,800 lumens with an efficacy of up to 124 lm/W, providing bright and energy-efficient lighting.​

Customisable Finish: Available in standard white, grey, or black finishes, with the option for custom RAL colours to match specific design requirements.​

Suspended Installation: Designed for pendant mounting, supplied with a suspension kit for flexible installation heights.​

Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

Perfect for large-scale spaces such as lobbies, conference halls, auditoriums, and commercial areas where modern design and efficient lighting are essential.​

📐 Technical Specifications:

Light Source: Integrated LED​

Power Consumption: 146–574W​

Luminous Flux: 13,260–62,800 lm​

Luminous Efficacy: Up to 124 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80 or 90​

MacAdam SDCM: 3​

UGR: ≤17​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP40​

Impact Resistance: IK04​

Class of Protection: Class I

Housing Material: Powder-coated aluminium

Diffuser Material: Opal/matt plastic​

Dimensions: Outer Diameter: 1400 mm, 1600 mm, 2100 mm, 2800 mm, 4000 mm, 5300 mm​

Weight: 12.1–47.6 kg​

The AR1002 combines expansive design with high-performance lighting, making it a versatile choice for enhancing large modern interiors with both style and functionality.​

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W DIAMETER HEIGHT
38 4040 llm 640 60
43 4540 llm 800 60
85 8650 llm 800 60
75 7350 llm 1200 60
86 13,580 llm 1200 60
140 11,900 llm 1200 60
