ARCHITECTURAL

A family of circular LED luminaires with a modern and versatile design, suitable for any interior space. Their key features include uniform luminance across the OPAL diffuser and high-quality lighting performance. Suspensions included in the set.

  • Materials: Powder painted aluminum profile (white, grey and black colours in standard). OPAL diffuser.
  • Installation:

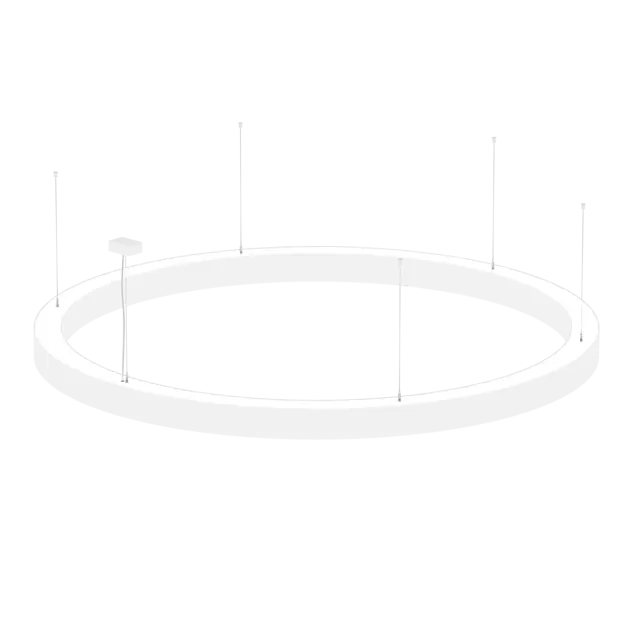

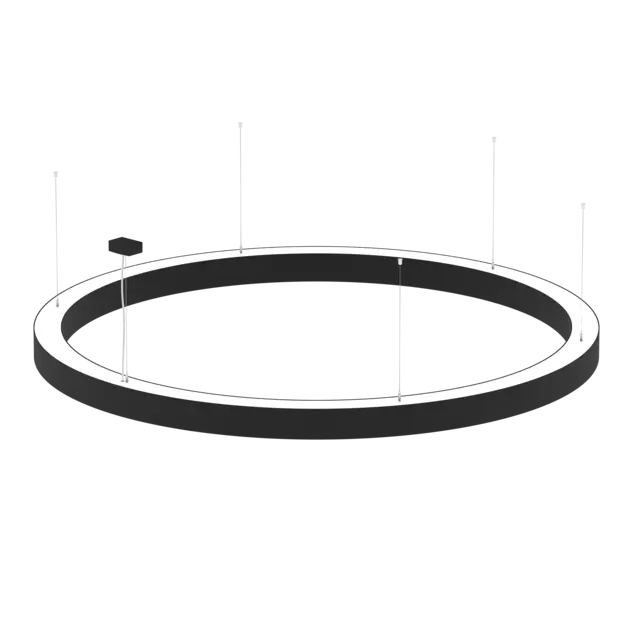

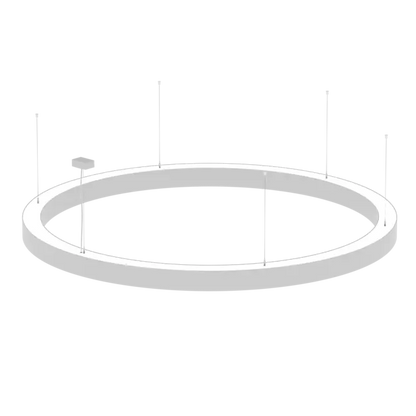

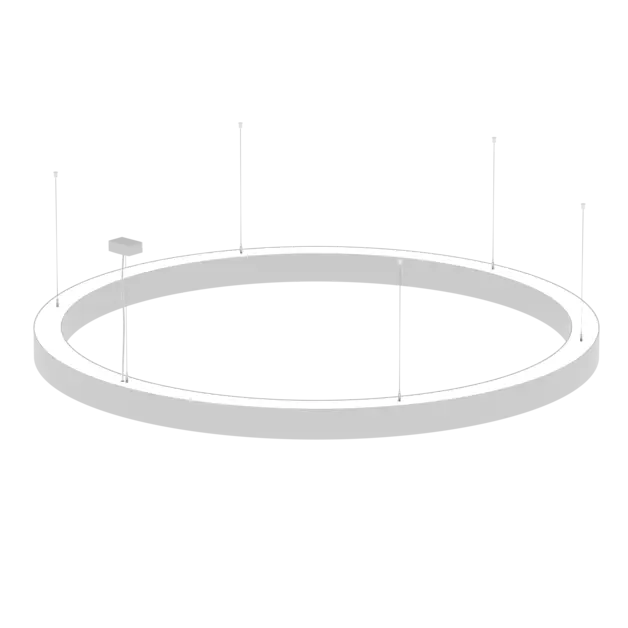

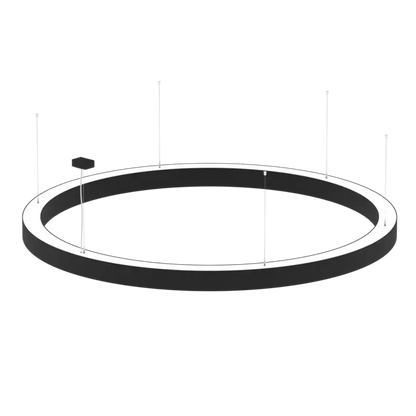

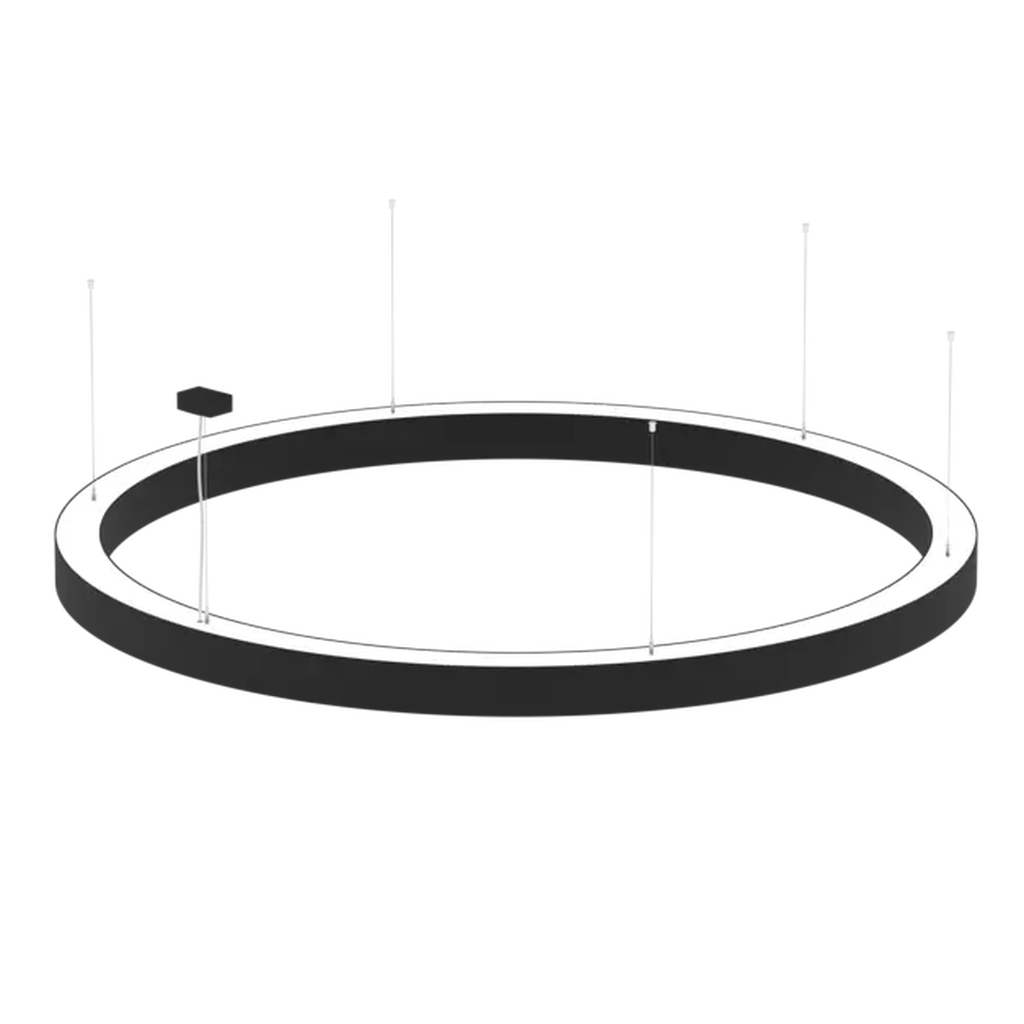

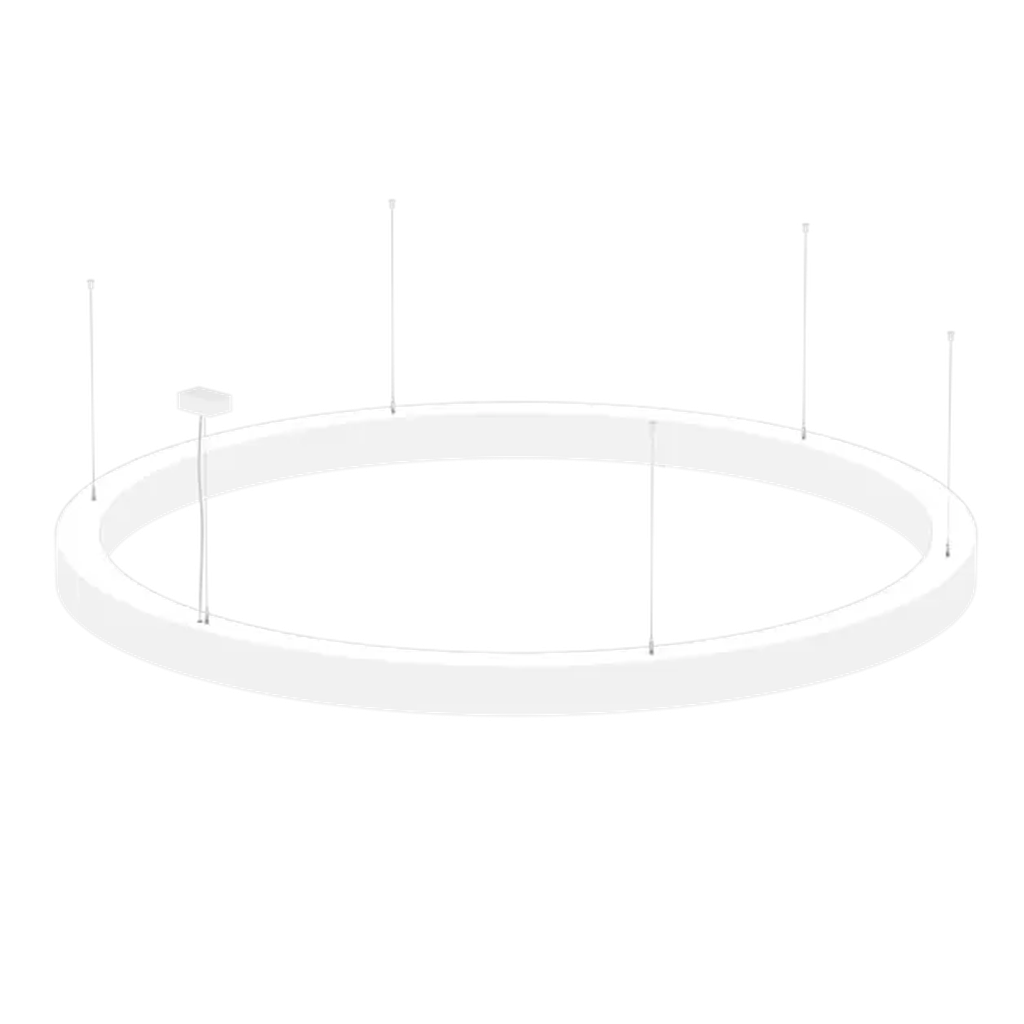

AR1005 | Suspended Architectural LED Ring Pendant

The AR1005 is a suspended LED luminaire featuring a grand circular design. Its expansive form and uniform illumination make it an ideal choice for adding a modern architectural statement to spacious interior environments.​

🔍 Key Features:

  • Architectural Design: Large circular shape crafted from powder-coated aluminium, offering a contemporary aesthetic.​
  • Uniform Illumination: Equipped with an opal diffuser that ensures even light distribution, enhancing visual comfort.​
  • Efficient Performance: Delivers a luminous flux of up to 62,800 lumens with an efficacy of up to 124 lm/W, providing bright and energy-efficient lighting.​
  • Customisable Finish: Available in standard white, grey, or black finishes, with the option for custom RAL colours to match specific design requirements.​
  • Suspended Installation: Designed for pendant mounting, supplied with a suspension kit for flexible installation heights.​
  • Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

  • Perfect for large-scale spaces such as lobbies, conference halls, auditoriums, and commercial areas where modern design and efficient lighting are essential.​

📐 Technical Specifications:

  • Light Source: Integrated LED​
  • Power Consumption: 146–574W​
  • Luminous Flux: 13,260–62,800 lm​
  • Luminous Efficacy: Up to 124 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: 80 or 90​
  • MacAdam SDCM: 3​
  • UGR: ≤17​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional​
  • Motion Sensor: Optional​
  • Protection Rating: IP40​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Powder-coated aluminium​
  • Diffuser Material: Opal/matt plastic​
  • Dimensions: Outer Diameter: 1400 mm, 1600 mm, 2100 mm, 2800 mm, 4000 mm, 5300 mm
  • Weight: 12.1–47.6 kg​

The AR1005 combines expansive design with high-performance lighting, making it a versatile choice for enhancing large modern interiors with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMEN DIAMETER (Ø) HEIGHT (H)
267

13,185 (DI)
13,185 (ID)

 1600 62
334

16,400 (DI)
16,400 (ID)

 2000 62
417

20,000 (DI)
20,000 (ID)

 2800 62



CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
