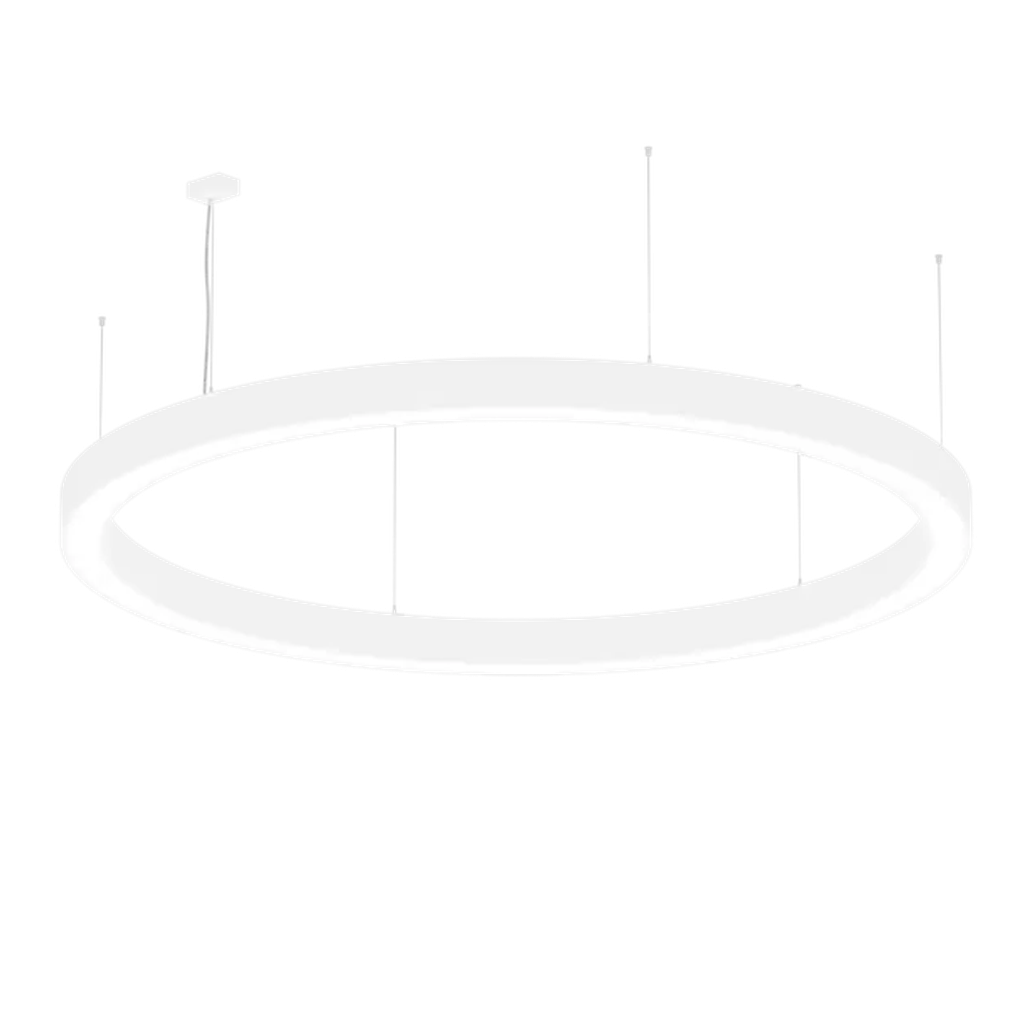

AR1004

AR1004

ARCHITECTURAL

A family of circular LED luminaires with a modern and versatile design, suitable for any interior space. Their key features include uniform luminance across the OPAL diffuser and high-quality lighting performance. Suspensions included in the set.

  • Materials: Powder painted aluminum profile (white, grey and black colours in standard). OPAL diffuser.
  • Installation: Suspended (suspensions in set) lenght 2,8m for versions 1400-2800mm lenght 5m for versions 4000-5300

AR1004 | Suspended Architectural LED DI Ring Pendant Luminaire

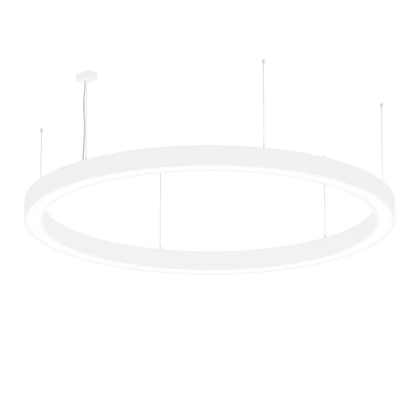

The AR1004 is a suspended LED luminaire featuring an expansive circular design. Its substantial form and uniform illumination make it an ideal choice for adding a modern architectural statement to spacious interior environments.​

🔍 Key Features:

Architectural Design: Large circular shape crafted from powder-coated aluminium, offering a contemporary aesthetic.​

Uniform Illumination: Equipped with an opal diffuser that ensures even light distribution, enhancing visual comfort.​

Efficient Performance: Delivers a luminous flux of up to 62,800 lumens with an efficacy of up to 124 lm/W, providing bright and energy-efficient lighting.​

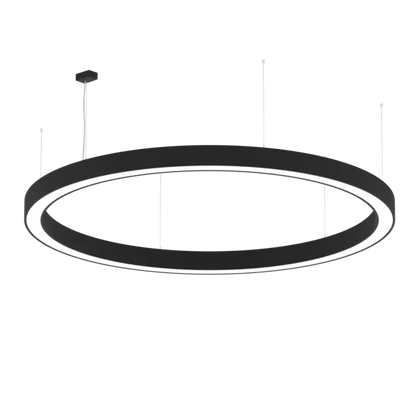

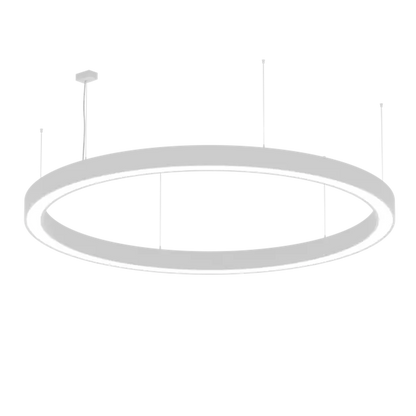

Customisable Finish: Available in standard white, grey, black, or anthracite finishes, with the option for custom RAL colours to match specific design requirements.​

Suspended Installation: Designed for pendant mounting, supplied with a suspension kit for flexible installation heights.​

Control Options: Available with ON/OFF, DALI, or Casambi drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

Perfect for large-scale spaces such as lobbies, conference halls, auditoriums, and commercial areas where modern design and efficient lighting are essential.​

📐 Technical Specifications:

Light Source: Integrated LED​

Power Consumption: 146–574W​

Luminous Flux: 13,260–62,800 lm​

Luminous Efficacy: Up to 124 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80 or 90​

MacAdam SDCM: 3​

UGR: ≤17​

Driver Options: ON/OFF, DALI, Casambi​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP40​

Impact Resistance: IK04​

Class of Protection: Class I​

Housing Material: Powder-coated aluminium​

Diffuser Material: Opal/matt plastic​

Dimensions: Outer Diameter: 1400 mm, 1600 mm, 2100 mm, 2800 mm, 4000 mm, 5300 mm​

Weight: 12.1–47.6 kg​

The AR1004 combines expansive design with high-performance lighting, making it a versatile choice for enhancing large modern interiors with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W DIAMETER (Ø) HEIGHT (H)
146
15,900 llm
 1400 62
166
18,000 llm
 1600 62
220
27,225 llm
 2100 62
300
33,000 llm
 2800 62
429
47,000 llm
 4000 62
574
62,800 llm
 5300 62
