• CR1005.
1 1

CR1005

CR1005

CLEAN ROOM

A series of luminaires recommended for spaces that require an increased IP protection rating. Designed for installation in plasterboard ceilings, they come equipped with an OPAL diffuser.

  • Materials: Powder painted housing made of galvanized steel sheets (standard color: white), OPAL diffuser made of polycarbonate
  • Installation:

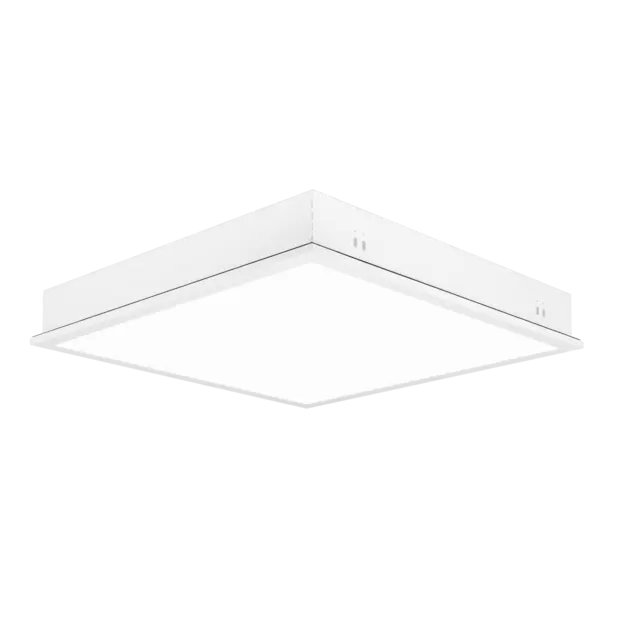

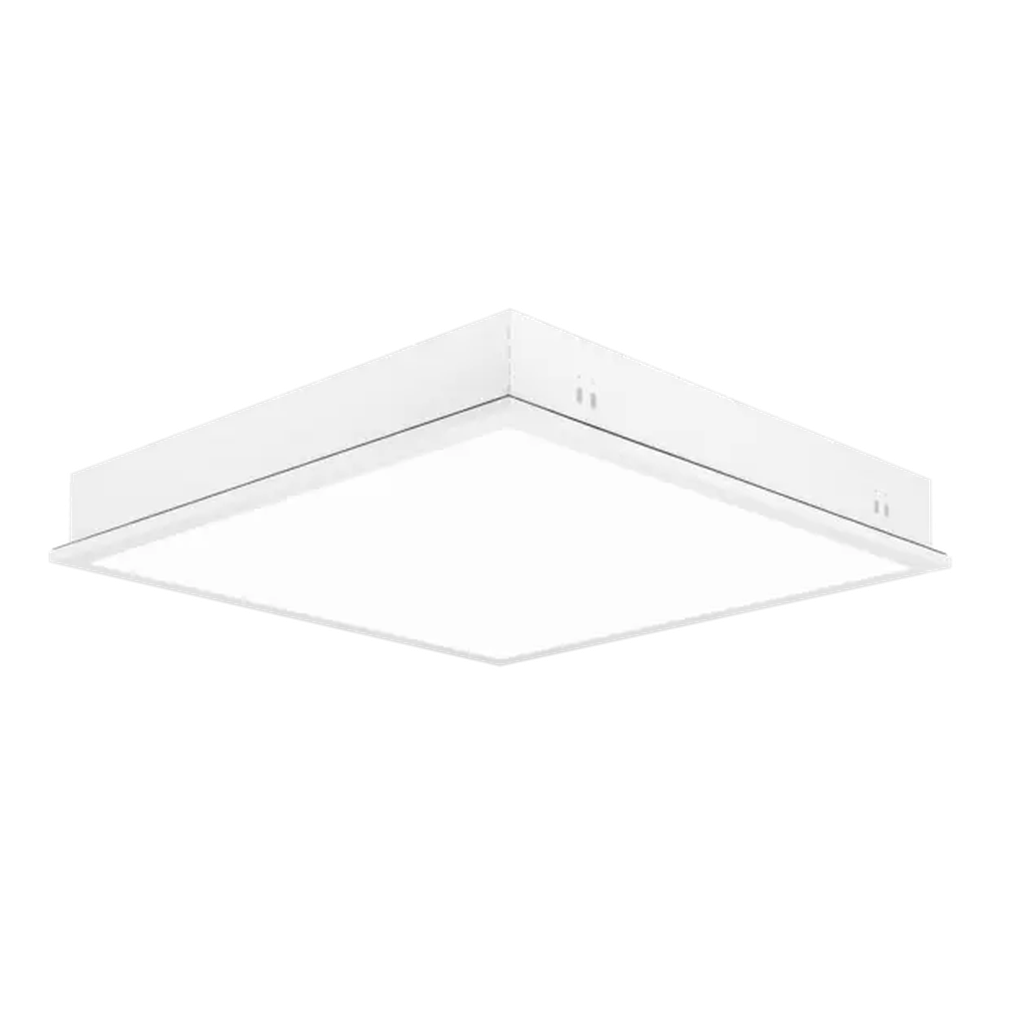

CR1005 | Surface 600x600 IP54 LED Cleanroom Style Luminaire

The CR1005 is a recessed LED luminaire engineered for environments demanding enhanced ingress protection and uniform illumination. Its robust construction and efficient performance make it ideal for cleanrooms and other sensitive areas.​

🔍 Key Features:

  • Enhanced Protection: IP54-rated from below, ensuring resistance against dust and water ingress, suitable for cleanroom environments.​
  • Efficient Performance: Delivers luminous efficacy up to 129 lm/W, providing bright and energy-efficient lighting.​
  • Uniform Illumination: Equipped with an OPAL diffuser that ensures even light distribution, enhancing visual comfort.​
  • Versatile Installation: Designed for recessed mounting into plasterboard ceilings, accommodating various spatial requirements.​
  • Control Options: Available with ON/OFF or DALI drivers. Optional emergency module and motion sensor integrations.​

🏢 Ideal Applications:

  • Perfect for bathrooms, corridors and staircases, cloakrooms, technical rooms, security areas, and social rooms where enhanced protection and efficient lighting are essential.​

📐 Technical Specifications:

  • Light Source: Integrated LED​
  • Power Consumption: 38–43W​
  • Luminous Flux: 3,510–4,885 lm​
  • Luminous Efficacy: 87–129 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: 80 or 90​
  • MacAdam SDCM: 3​
  • UGR: 18 or 19​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional​
  • Motion Sensor: Optional​
  • Protection Rating: IP54 (bottom), IP20 (top)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Powder-coated galvanized steel sheet​
  • Diffuser Material: OPAL polycarbonate​
  • Dimensions: 595x595 mm or 1195x295 mm​
  • Weight: 4.6–5.9 kg​

The CR1005 combines robust protection with high-performance lighting, making it a versatile choice for enhancing cleanroom and other sensitive environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
38

4250 llm

 595 595 80
43

4520 llm

 1195 595 80
