CR1006

CR1006

CLEAN ROOM

A series of luminaires recommended for spaces that require an increased IP protection rating. Designed for installation in plasterboard ceilings, they come equipped with an OPAL diffuser.

  • Materials: Powder painted housing made of galvanized steel sheets (standard color: white), microprismatic diffuser (MPRM) made of PMMA, OPAL diffuser made of polycarbonate, tempered glass (SH MAT), parabolic (PAR) louver.
  • Installation:

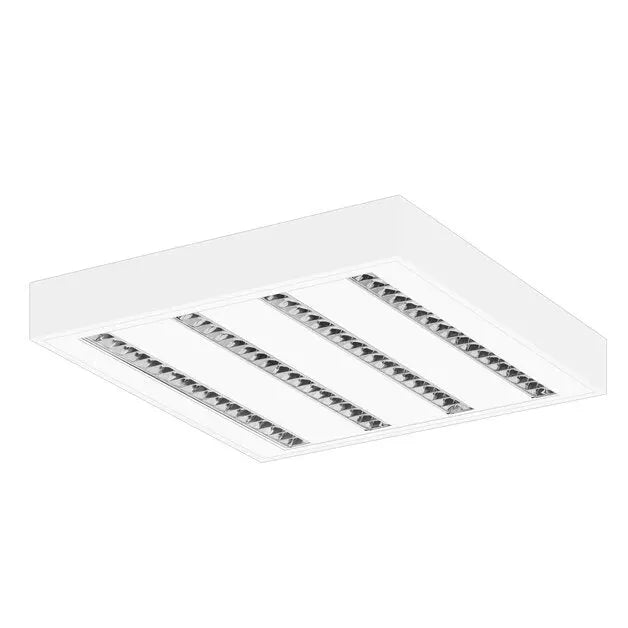

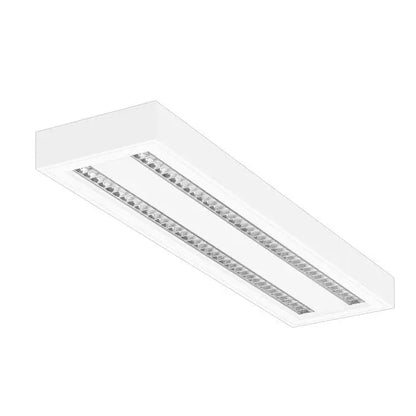

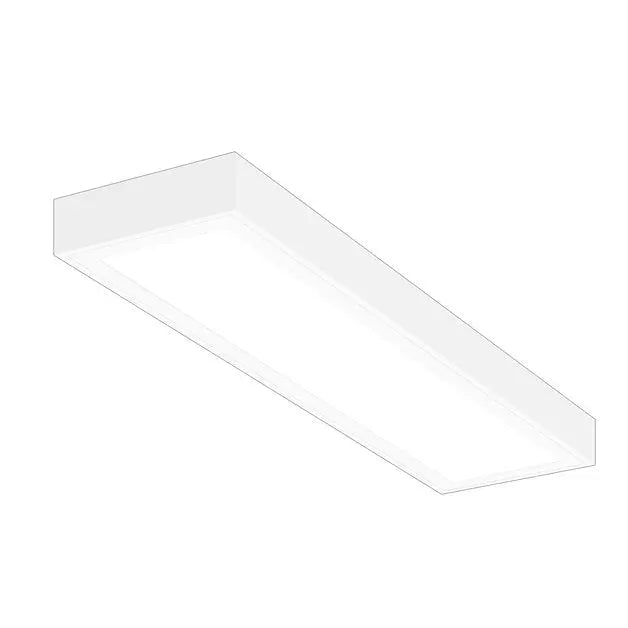

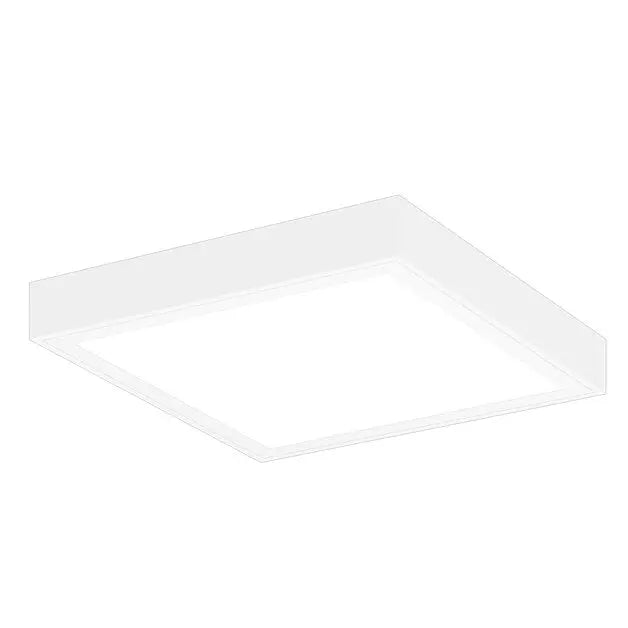

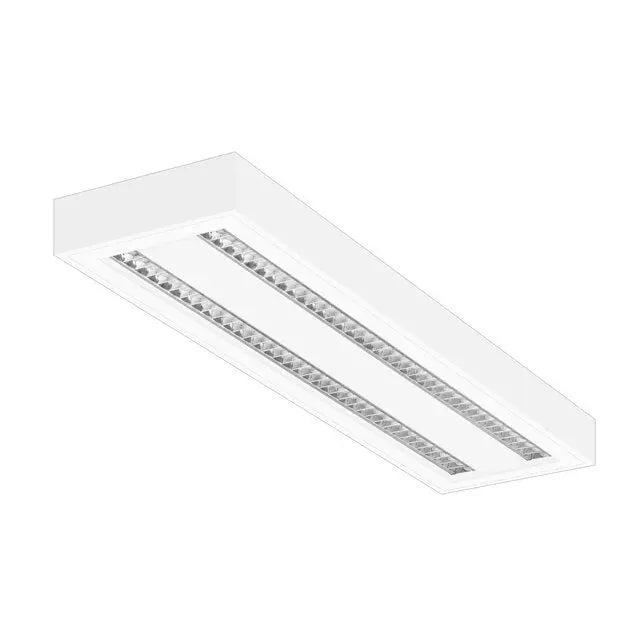

CR1006 | Surface Clean IP65 LED Cleanroom Luminaire

The CR1006 is a surface-mounted LED luminaire engineered for environments demanding high ingress protection and uniform illumination. Its robust construction and efficient performance make it ideal for cleanrooms and other sensitive areas. ​

🔍 Key Features:

  • Enhanced Protection: IP65-rated enclosure ensures resistance against dust and water ingress, suitable for cleanroom environments. ​
  • Efficient Performance: Delivers luminous efficacy up to 146 lm/W, providing bright and energy-efficient lighting. ​
  • Uniform Illumination: Equipped with OPAL or microprismatic (MPRM) diffusers that ensure even light distribution, enhancing visual comfort. ​
  • Versatile Installation: Designed for ceiling mounting, accommodating various spatial requirements.
  • Control Options: Available with ON/OFF or DALI drivers. Optional emergency module and motion sensor integrations. ​

🏢 Ideal Applications:

  • Perfect for laboratories, treatment rooms, operating theatres, doctor's offices, infirmaries, technical rooms, swimming pools, and production halls where enhanced protection and efficient lighting are essential. ​

📐 Technical Specifications:

  • Light Source: Integrated LED​
  • Power Consumption: 43–100W​
  • Luminous Flux: 4,050–11,470 lm​
  • Luminous Efficacy: Up to 146 lm/W​
  • Colour Temperature: 2700K–6500K​
  • CRI: 80 or 90​
  • MacAdam SDCM: 3​
  • UGR: 15–22​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional​
  • Motion Sensor: Optional​
  • Protection Rating: IP65​
  • Impact Resistance: IK08 or IK10​
  • Class of Protection: Class I​
  • Housing Material: Powder-coated steel sheet​
  • Diffuser Material: OPAL or microprismatic (MPRM) plastic​
  • Dimensions: 595x595 mm or 1195x295 mm​
  • Weight: 6.8–11.3 kg​

The CR1006 combines robust protection with high-performance lighting, making it a versatile choice for enhancing cleanroom and other sensitive environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
43

6,280 llm

 595 595 93
51

6,500 llm

 1195 295 93
100

11,470 llm

 595 595 93
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
