DL1001

DL1001

Downlight

Recessed 82(Ø)x105(H) Fixed Circular Modular Downlight Style Luminaire

  • Materials: Aluminium and Polycarbonate
  • Installation:

DL1001 | Architectural LED Trimless Downlight

The DL1001 is a high-performance architectural LED downlight engineered for precision, visual comfort, and seamless ceiling integration. Its minimalist presence conceals a powerful lighting engine with advanced optical control, multiple beam angles, and full compatibility with smart lighting systems.

Built with superior thermal management and interchangeable reflector options, this luminaire delivers the perfect balance between performance and aesthetics for high-end commercial, retail, and residential environments.

🔍 Key Features:

  • High Visual Comfort:
    CRI90+ output with flicker-free performance ensures clean, colour-true illumination for demanding visual environments.
  • Flexible Beam Control:
    Available in 15°, 24°, 38°, and 60° beam angles to suit spotlighting, ambient, or accent lighting needs.
  • Interchangeable Reflectors:
    Choose from black, white, chrome, or gold cones to tailor visual impact and blend seamlessly into any ceiling design.
  • Smart Control Compatible:
    Fully integrable with DALI, Phase, CASAMBI, and BMS platforms—future-proofing your building system.
  • Thermal Engineering:
    Die-cast aluminium body with vertical-finned heatsink design for advanced thermal dissipation and longevity.
  • Trimmed or Trimless Design:
    Delivers architectural flexibility for both minimalist and traditional ceiling finishes.
  • Installation Efficiency:
    Tool-free push-fit spring clips ensure fast and secure mounting across plasterboard and tile ceiling systems.
  • Optional Add-ons:
    Tuneable white, emergency lighting modules, and IP44 front sealing available for commercial, healthcare, and high-spec environments.

🏢 Ideal Applications:

  • Retail • Hospitality • Commercial Offices • Healthcare • High-End Residential • Galleries • Museu

📐 Technical Specifications:

  • Wattage Range 7.2W – 40W (model dependent)
  • Luminous Flux Up to 1403lm @ 12.6W (4000K)
  • Cut-Out Ø75–Ø100 mm
  • Fixture Diameter Ø82–Ø100 mm
  • Height 105 mm
  • Beam Angles 15°, 24°, 38°, 60°
  • Colour Temperatures 2700K, 3000K, 4000K, Tuneable White, Dim to Warm
  • Reflector Options Black / White / Chrome / Gold
  • Driver Options Phase, DALI, CASAMBI, BMS-Ready
  • IP Rating IP20 (IP44 or IP65 front option available)
  • Mounting Recessed
  • Emergency Pack Optional
  • Control Smart Lighting Compatible

💬 "DL1001 is lighting you don’t see, until you feel the difference."

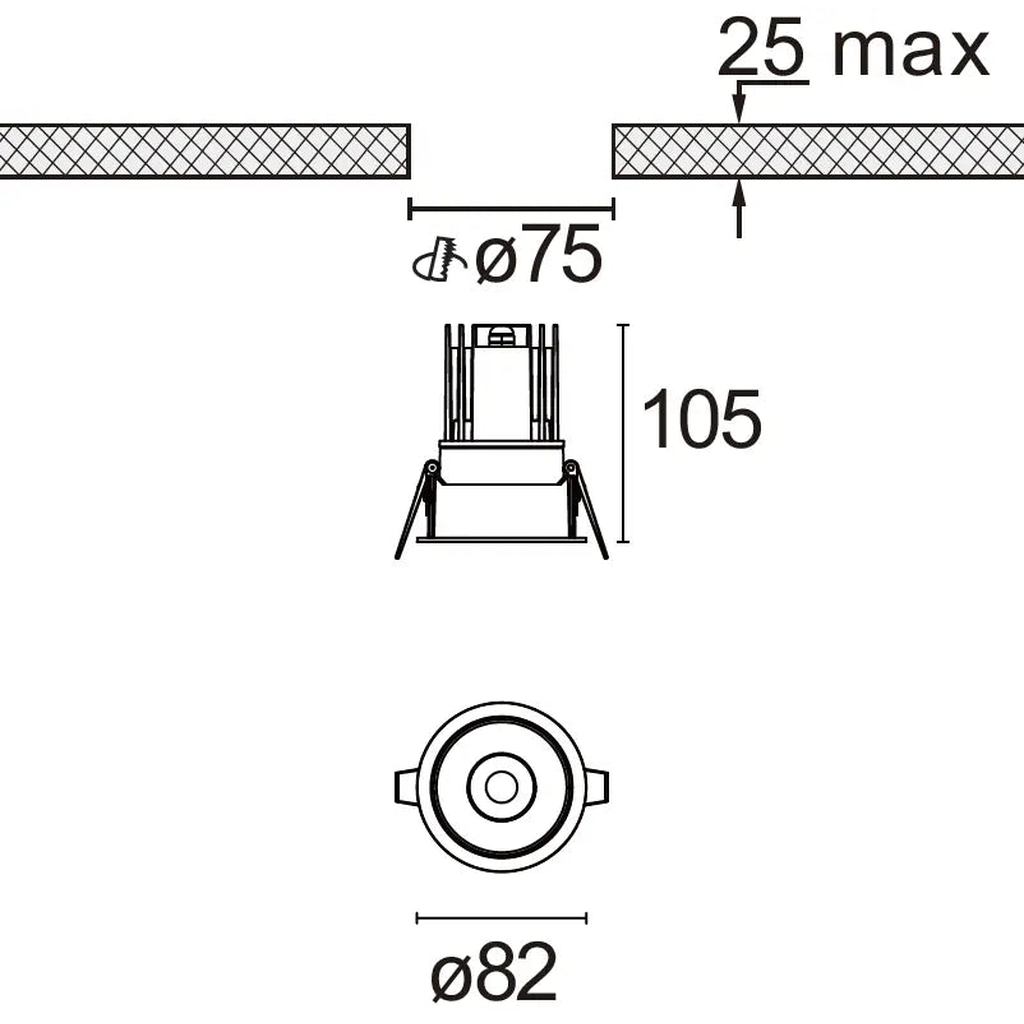

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (w) LUMEN DIAMTER (Ø) CUT-OUT (Ø) HEIGHT (H)
7.2W 756lm 82 75 105
10.8W 1134lm 82 75 105
12.6W 1403lm 82 75 105


CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
