DL1159

DL1159 | Trimless Recessed Linear Downlight for Seamless Architectural Ceilings

The DL1159 is a Trimless recessed linear downlight engineered for ultra-clean ceiling integration with no visible flange or frame.

Available in five precision cut-out sizes and a range of beam angles, it delivers high visual comfort with a low-glare louvre system and quality optical performance.

The die-cast aluminium body ensures excellent thermal management, while the modular design supports both general and wall-washing applications. Ideal for high-end interiors where minimalism meets performance.

Key Features

• Form Factor & Size: Trimless recessed profile in five cut-out dimensions: 42×41mm, 72×41mm, 145×41mm, 277×41mm, 410×41mm

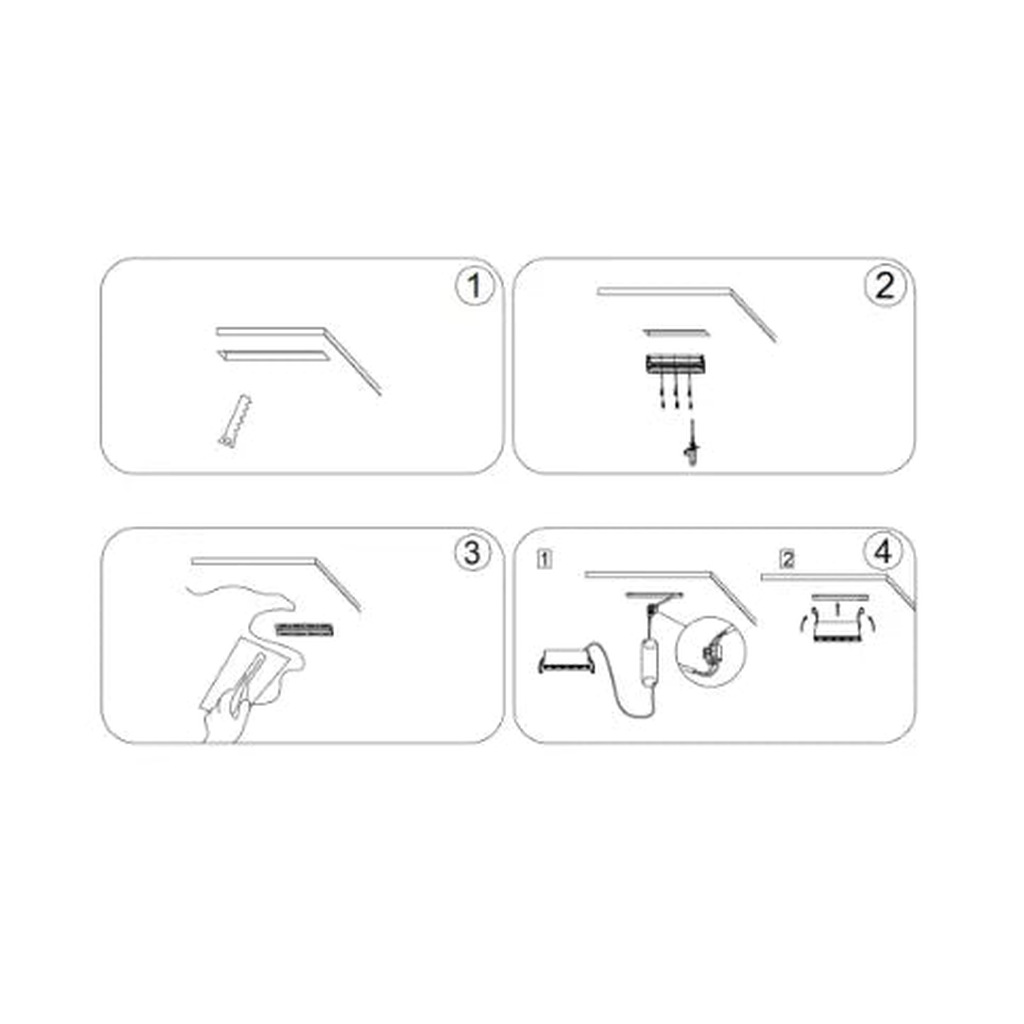

• Mounting Type: Trimless recessed installation – no visible bezel; tool-free mounting
• Wattage Range: 2W, 4W, 10W, 20W, 30W
• Lumen Output: 250lm, 500lm, 1250lm, 2500lm, 3750lm
• Optics: Fixed beam angles: 15°, 30°, 45° with integrated anti-glare louvre for low UGR
• CCT Range: Supports 2700K – 4000K, Tunable White, RGB, and RGBW
• IP Rating: IP20 – suitable for indoor dry zones
• Accessories: Anti-glare louvres included; general light and wall washer optics available
• Control/Driver Options: Compatible with constant-current drivers (not included)

Ideal Applications

• Luxury villa ceiling integration
• Hospitality corridors and lounges
• High-end residential living spaces
• Boutique retail and galleries
• Hotel lobbies and reception zones
• Minimalist architecture with concealed fittings

Technical Summary

Why Specify DL1160?

DL1159 delivers on the architectural promise of invisibility, a Trimless linear downlight that vanishes into the ceiling, yet commands attention with its optical precision and comfort. Designed for modern interiors where every detail matters, its beam control, build quality, and tool-free installation make it a go-to for designers and contractors demanding both performance and purity in recessed lighting.
