DL1160

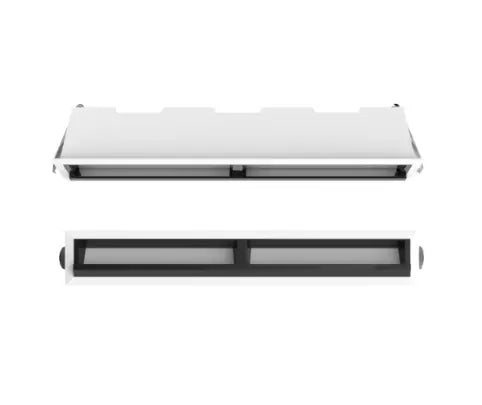

DL1160 | Recessed Linear Wall Washer with Integrated Glare Control

The DL1160 is a high-performance recessed linear wall washer, engineered to deliver uniform vertical illumination with minimal visual intrusion.

Designed for precision architectural applications, it features a fixed wall wash optic, anti-glare louvre, and tool-free installation.

The die-cast aluminium body ensures efficient heat dissipation, while its compact form factor supports seamless ceiling integration across a variety of upscale environments.

Key Features

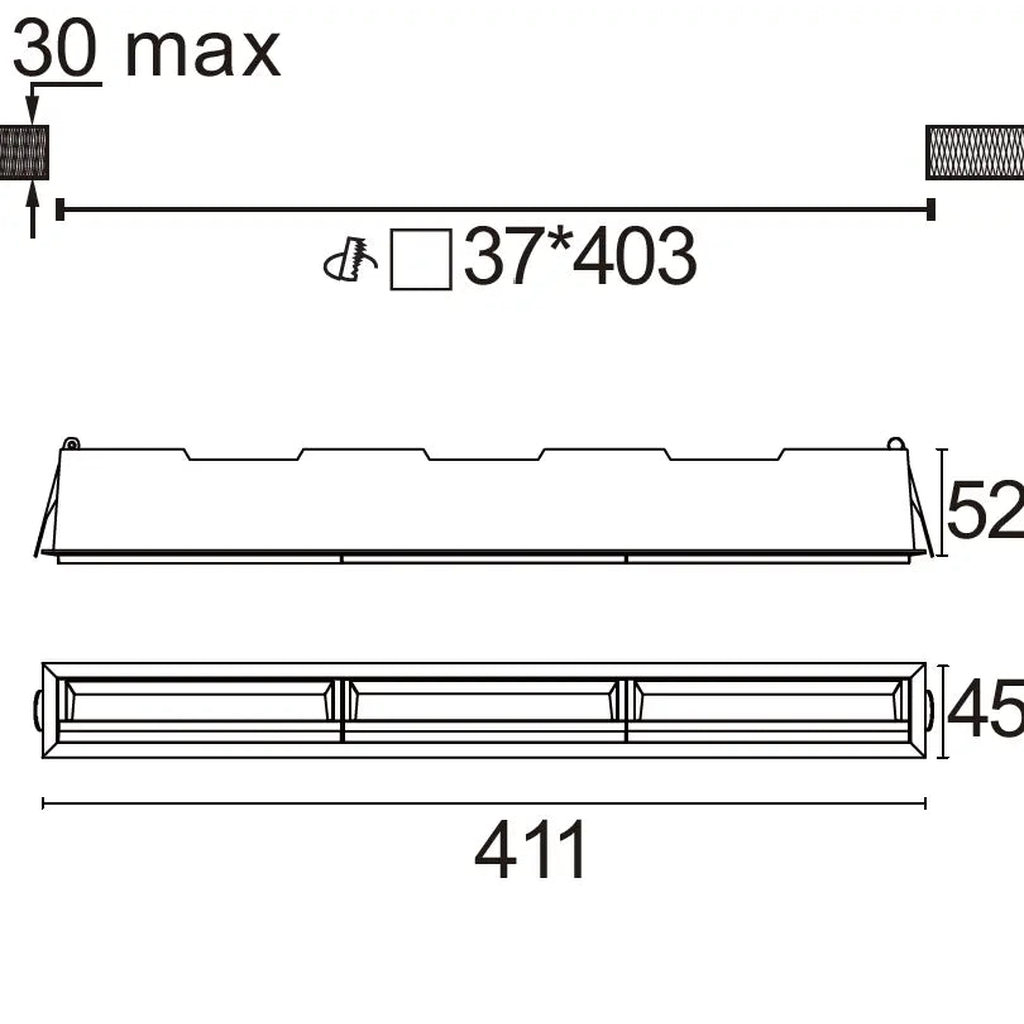

• Form Factor & Size: Recessed linear profile in three sizes: 147×45mm, 279×45mm, 411×45mm
• Mounting Type: Recessed ceiling mount with tool-free installation
• Wattage Range: 10W, 20W, 30W
• Lumen Output: 1250lm, 1500lm, 3750lm
• Optics: Fixed wall washer beam; integrated anti-glare louvre for low UGR
• CCT Range: Supports 2700K – 4000K, Tunable White, RGB, and RGBW
• IP Rating: IP20 – dry indoor use
• Accessories: Anti-glare louvre included; wall wash optic as standard
• Control/Driver Options: Compatible with constant-current LED drivers (not included)

Ideal Applications

• Feature wall illumination in hotels and hospitality venues
• Gallery and museum display lighting
• Reception backdrops and signage walls
• High-end residential or commercial corridors
• Vertical wash lighting for architectural textures or art installations
• Minimalist ceiling slots requiring concealed fixtures

Technical Summary

DL1160 is purpose-built for designers who need to light vertical planes with elegance and control. Its compact design blends invisibly into ceilings while delivering smooth wall illumination with no harsh spill or discomfort.

Whether it's an art wall, signage feature, or corridor accent, this glare-controlled wall washer creates impactful lighting with minimal footprint — the ideal solution for minimalist, detail-driven interiors.
