DL1161

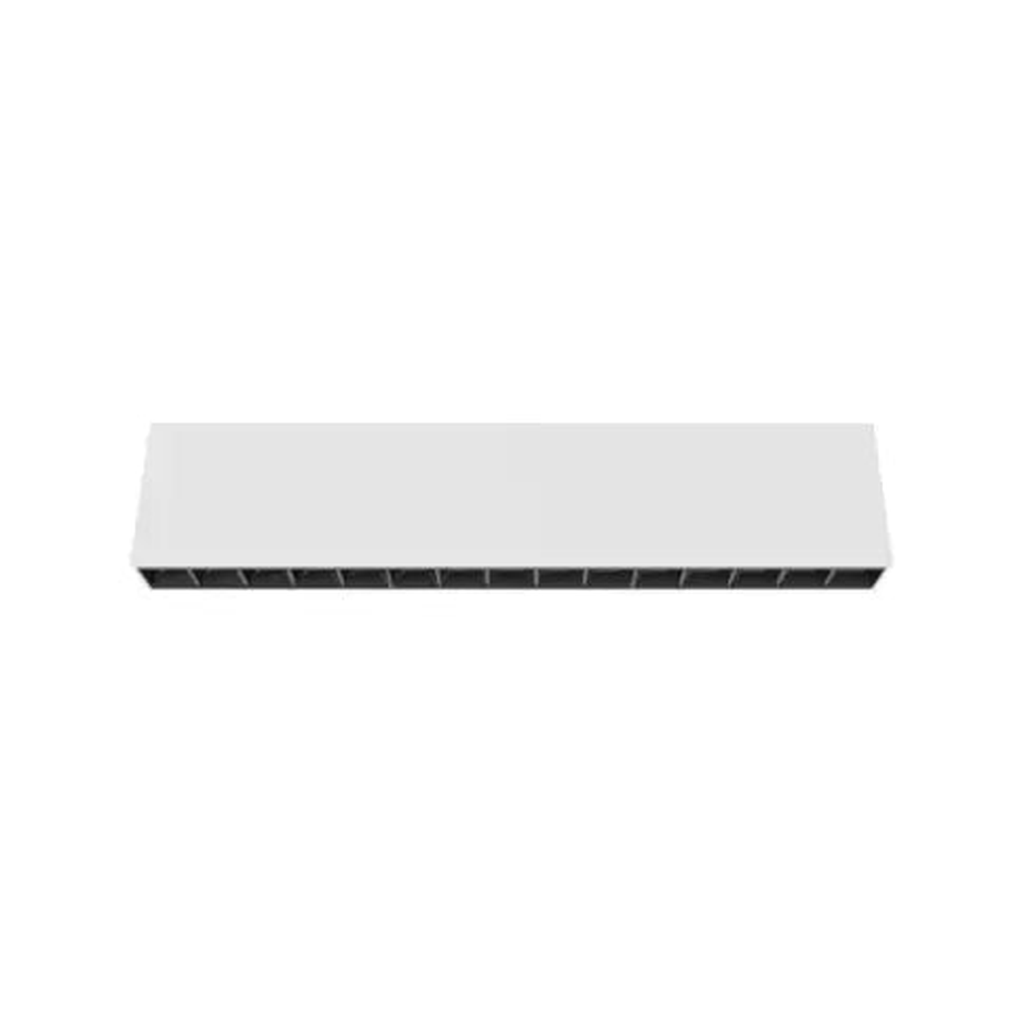

DL1161 | Surface-Mounted Linear Downlight with Ultra-Low Glare and Architectural Precision

The DL1161 is a surface-mounted linear downlight built for modern interiors requiring minimal glare, precision optics, and high visual comfort.

Crafted from CNC-machined aviation-grade aluminium and finished with a textured powder coat, it delivers architectural-grade lighting with a robust aesthetic.

Available in three compact lengths, this luminaire includes a built-in driver, anti-glare louvre system, and multiple beam angle options, making it ideal for wall and ceiling-mounted applications.

Key Features

• Form Factor & Size: Surface-mount fixture available in three sizes:
  140×37×86mm, 272×37×86mm, 405×37×86mm
• Mounting Type: Surface mount (wall or ceiling) with clip-in installation
• Wattage Range: 10W, 20W, 30W (approx. 2.1W per optical cell)
• Lumen Output: Not specified; designed for efficient architectural lighting
• Optics: Fixed beam angles of 15°, 30°, 45° with anti-glare louvre for low UGR
• CCT Range: Supports 2700K – 4000K, Tuneable White, RGB, and RGBW
• IP Rating: IP20 – for dry indoor use
• Accessories: Integrated low-glare optics; built-in driver included
• Control/Driver Options: Built-in constant current driver

Ideal Applications

• Contemporary residential wall or ceiling lighting
• Hospitality interiors and reception areas
• Architectural feature walls or linear task zones
• Corridor and perimeter lighting in commercial spaces
• Luxury villa lighting with minimalist ceiling exposure
• Art wall grazing and low-glare ambient lighting

Technical Summary

Why Specify DL1161?

DL1161 delivers top-tier visual comfort in a surface-mounted format that doesn’t compromise on aesthetics or performance. Its CNC-finished aluminium housing, low-glare optics, and clean geometry make it a designer’s go-to for premium interiors. With its built-in driver and easy clip-on installation, it’s a powerful solution where architectural lines and lighting quality must align.
