AR1003

AR1003

ARCHITECTURAL

A family of circular LED luminaires with a modern and versatile design, suitable for any interior space. Their key features include uniform luminance across the OPAL diffuser and high-quality lighting performance. Suspensions included in the set.

  • Materials: Powder painted aluminum profile (white, grey and black colours in standard). OPAL diffuser.
  • Installation: Suspended (suspensions 1,5 m in set)

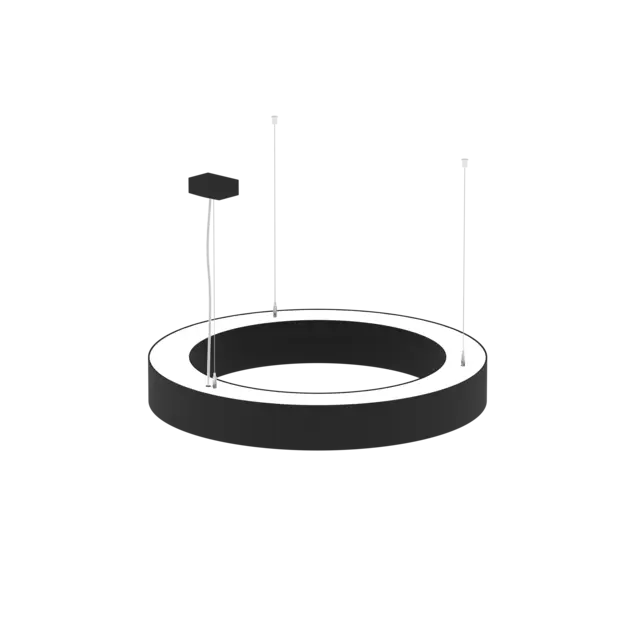

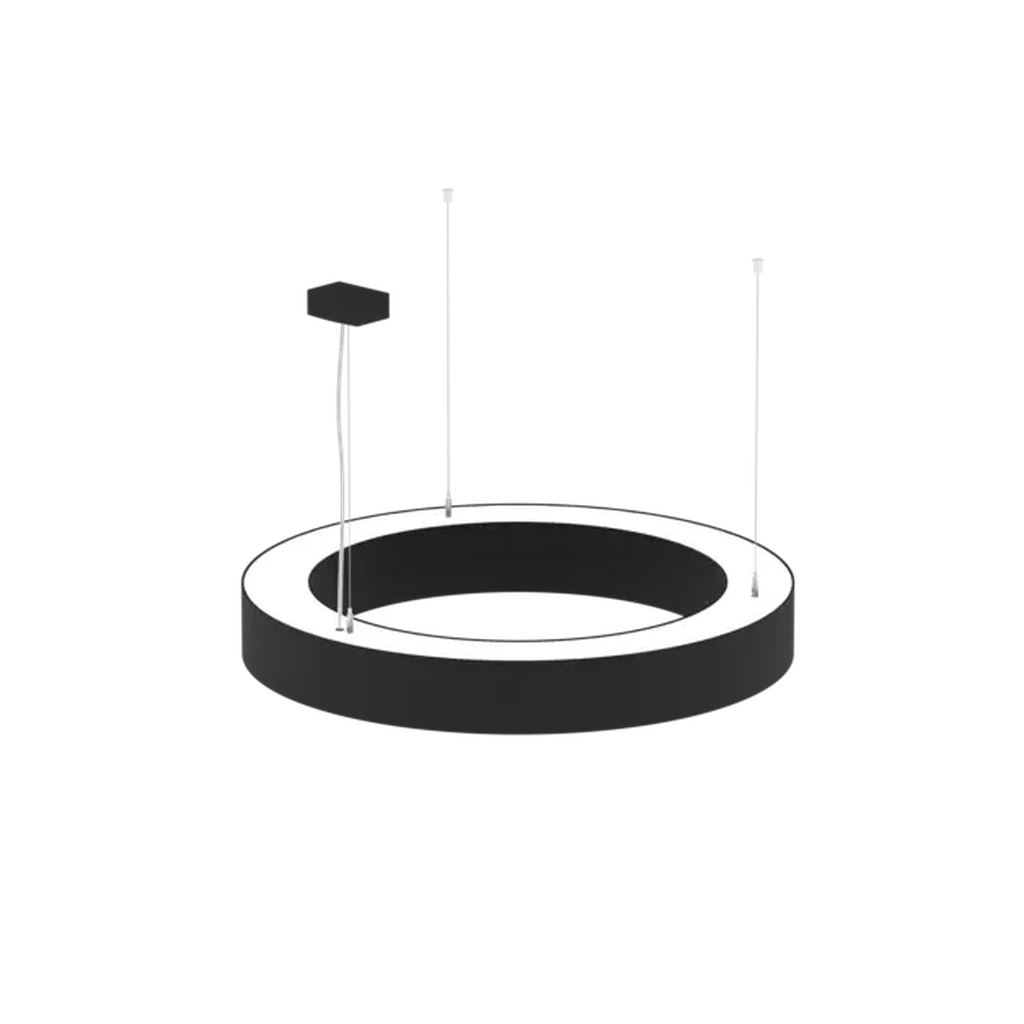

AR1003 | Architectural LED Ring Pendant with Direct/Indirect Illumination

The AR1003 is a suspended LED luminaire featuring a circular design with both direct and indirect lighting capabilities. Its modern form and uniform illumination make it an ideal choice for adding a contemporary architectural statement to interior spaces.​

🔍 Key Features:

Architectural Design: Circular shape crafted from powder-coated aluminium, offering a sleek and modern aesthetic.​

Dual Illumination: Provides both direct and indirect lighting, enhancing spatial depth and visual comfort.​

Uniform Illumination: Equipped with an opal diffuser that ensures even light distribution, reducing glare and enhancing ambiance.​

Efficient Performance: Delivers a luminous flux of up to 14,000 lumens with an efficacy of up to 100 lm/W, providing bright and energy-efficient lighting.​

Customisable Finish: Available in standard white, grey, or black finishes, with the option for custom RAL colours to match specific design requirements.​

Suspended Installation: Designed for pendant mounting, supplied with a suspension kit for flexible installation heights.​

Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

Perfect for offices, conference rooms, receptions, commercial spaces, corridors, and staircases where modern design and efficient lighting are essential.​

📐 Technical Specifications:

Light Source: Integrated LED​

Power Consumption: 124–200W​

Luminous Flux: 7,360–14,000 lm (Direct), 3,100–5,490 lm (Indirect)​

Luminous Efficacy: Up to 100 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80 or 90​

MacAdam SDCM: 3​

UGR: ≤16​

Driver Options: ON/OFF, DALI​

Emergency Module: Optionl

Motion Sensor: Optional​

Protection Rating: IP20​

Impact Resistance: IK04​

Class of Protection: Class

Housing Material: Powder-coated aluminium​

Diffuser Material: Opal/matt plastic​

Dimensions: Outer Diameter: 800 mm or 1200 mm​

Weight: 8.5–12.6 kg​

The AR1003 combines modern design with high-performance lighting, making it a versatile choice for enhancing contemporary interiors with both style and functionality.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W DIAMETER HEIGHT
124 8650(DI) / 3750(ID) llm 800 100
200 14,000(DI) / 5490(ID) llm 1200 100
