LS1020

LS1020

LIGHTING SYSTEMS

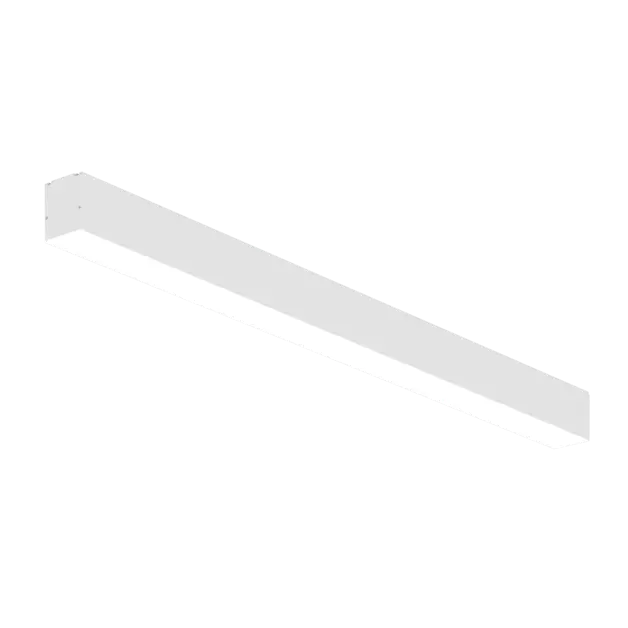

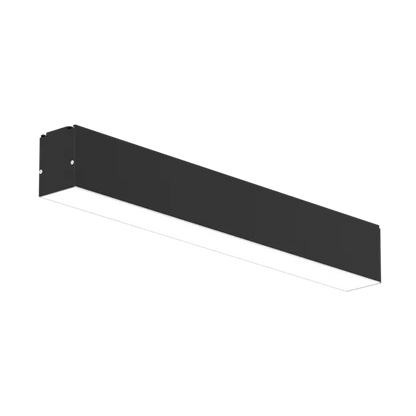

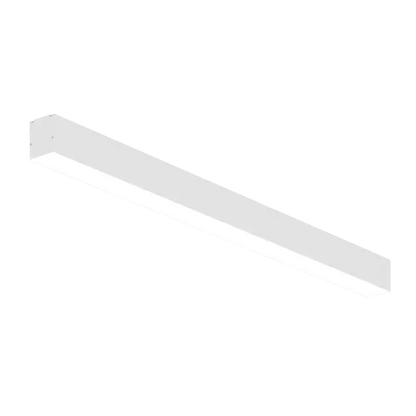

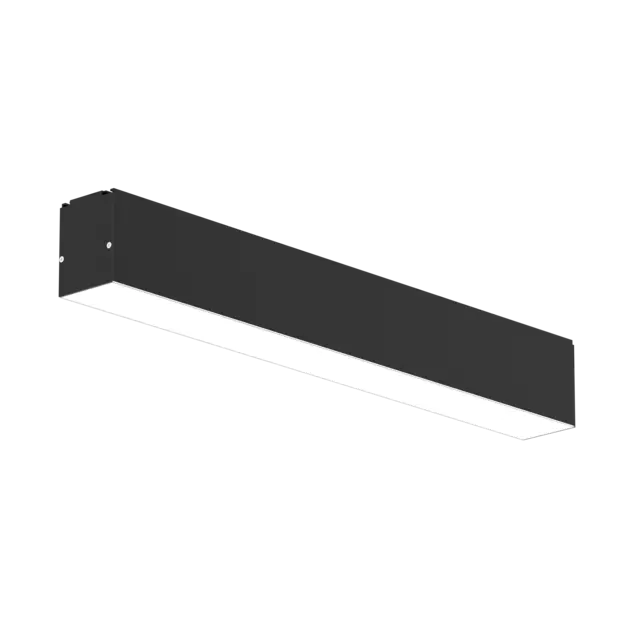

This new recessed LED luminaires system is designed to create seamless lighting lines without visible connections or mechanical mounting elements. It features flexible extruded diffusers, allowing for a smooth and elegant design. This sophisticated solution is highly effective for illuminating offices, conference rooms, reception areas, and other prestigious spaces. By combining aesthetics with functionality, it ensures a refined lighting experience that enhances the ambiance of any professional environment while providing optimal illumination.

  • Materials: Electrostatically painted trimless aluminum profile (standard colours: white, grey, black), OPAL diffuser made of PMMA or microprismatic diffuser MPRM
  • Installation: Into plaster-cardboard ceiling

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
13
1,480 llm
 545 57 78
25
2,955 llm
 1,085 57 78
36
4,425 llm
 1,625 57 78
48
5,900 llm
 2,170 57 78
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
